Tri-Fold Adjustment: Adjusting the Folded Positions in Tri-Fold Mode
When using Finisher FS-612, adjust the Fold 1 position in Tri-Fold mode.
Objects of Adjustment: Offset for All Size, A4
, 8.5
11 , 16K
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.
Press [Finisher Adjustment] and [Tri-Fold Adjustment] in sequence.

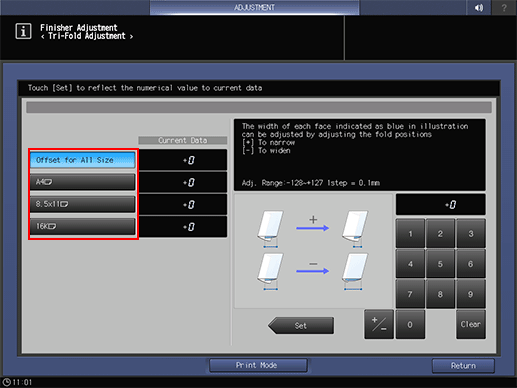

Select the size to be adjusted.
Press [Print Mode].
Load the paper with the size to be adjusted, then select that tray.
Press Start on the control panel.
A sample pattern will be output.
Check the folding positions on the printed paper.
Allowance:
Document size
a
b
c
A4
95 mm ± 2 mm
101 mm ± 2 mm
101 mm ± 2 mm
8.5
11 89 mm ±2 mm
95 mm ± 2 mm
95 mm ± 2 mm
16K
88 mm ± 2 mm
91 mm ± 2 mm
91 mm ± 2 mm
If any adjustment is required, press [Exit PrintMode] to return to the [Tri-Fold Adjustment] screen.
Use the touch panel keypad to enter the set value.
Use [+/-] to specify the value to be positive or negative.
Press [Set] to change the current value.
Adjustment Range: -128 ([To widen]) to +127 ([To narrow]) (1 step = 0.1 mm)
Repeat steps 4 to 9 until the desired result is obtained.
Press [Return].
The screen returns to the [Finisher Adjustment Menu] screen.
