2 Pos. Staple Pitch Adj.: Adjusting the Staple Pitch Determined in Fold & Staple and Staple Modes

Adjust the staple pitch determined in Fold & Staple and Staple modes.

Objects of Adjustment: Fold & Staple, Staple

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

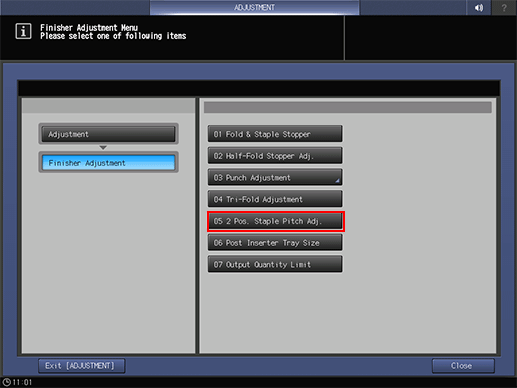

  2. Press [Finisher Adjustment] and [2 Pos. Staple Pitch Adj.] in sequence.

  3. Select either [Fold & Staple] or [Staple].

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the length (a) of staple pitch.

    Allowance: a = 128 mm ± 6 mm

  8. If any adjustment is required, press [Exit PrintMode] to return to the [2 Position Staple Pitch] screen.

  9. Use the touch panel keypad to enter the set value.

    • Press [Set] to change the current value.

    • Adjustment Range: +128 (Narrow) to +160 (Wide) (1 step = 1 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Finisher Adjustment Menu] screen.
