Output Quantity Limit: Specifying the Limit of Output Quantity

Specify the limit of output quantity delivered to the tray when using Finisher FS-531 or Finisher FS-612.

When Finisher FS-531 is mounted
Objects of Adjustment: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2, Staple / 106 to 135 g/m2, Staple / 136 to 216 g/m2

When Finisher FS-612 is mounted
Objects of Adjustment: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2, Staple / 106 to 135 g/m2, Fold & Staple / 62 to 80 g/m2, Fold & Staple / 81 to 105 g/m2, Half-Fold / 62 to 105 g/m2, Tri-Fold / 62 to 80 g/m2

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

  2. Press [Finisher Adjustment] and [Output Quantity Limit] in sequence.

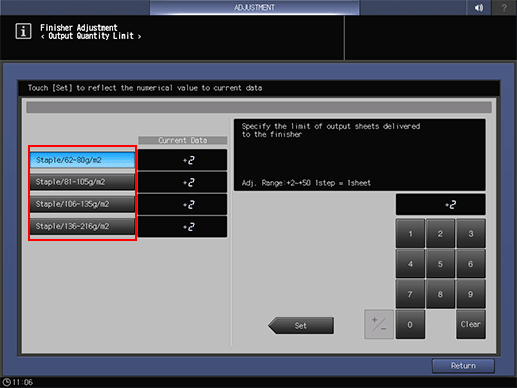

  3. Press the desired item key to be specified with the limit of output quantity.

    • For Finisher FS-531.

    • For Finisher FS-612.

  4. Use the touch panel keypad to enter the set value.

    • Press [Set] to change the current value.

    • When Finisher FS-531 is mounted
      Adjustment Range: Staple / 62 to 80 g/m2: +2 to +50 (1 step = 1 sheet), Staple / 81 to 105 g/m2: +2 to +40 (1 step = 1 sheet), Staple / 106 to 135 g/m2: +2 to +30 (1 step = 1 sheet), Staple / 136 to 216 g/m2: +2 to +20 (1 step = 1 sheet)

    • When Finisher FS-612 is mounted
      Adjustment Range: Staple / 62 to 80 g/m2, Staple / 81 to 105 g/m2: +2 to +50 (1 step = 1 sheet), Staple / 106 to 135 g/m2: 0, +2 to +20 (1 step = 1 sheet), Fold & Staple / 62 to 80 g/m2, Fold & Staple / 81 to 105 g/m2: +2 to +20 (1 step = 1 sheet), Half-Fold / 62 to 105 g/m2, Tri-Fold / 62 to 80 g/m2: +1 to +3 (1 step = 1 sheet)

  5. Press [Return].

    The screen returns to the [Finisher Adjustment Menu] screen.
