FD-Mag. Adjustment: Adjusting the Magnification in Paper Feed Direction in the Printer
Adjust the magnification in paper feed direction in the printer engine. This adjustment value will be the standard for Both Sides Adjust in Paper Setting.
This operation is the same as that in [Adjustment] - [Machine Adjustment] - [Printer Adjustment] - [FD-Mag. Adjustment], accessed from the [MACHINE] screen.
Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

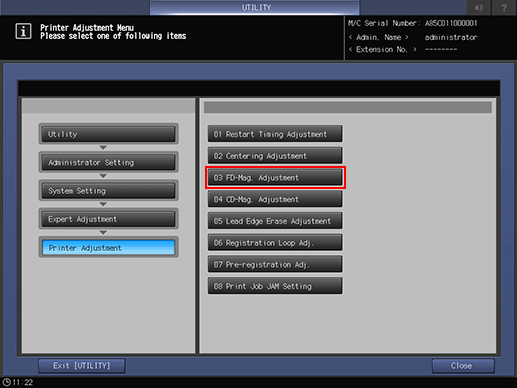

Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [Printer Adjustment], and [FD-Mag. Adjustment] in sequence.
The [FD-Mag. Adjustment] screen is displayed.
For details about subsequent operations, refer to FD-Mag. Adjustment: Adjusting the Magnification in Paper Feed Direction in the Printer.
