Print Job JAM Setting: Setting the Detection of Paper Jam Caused by Misalignment

Specify whether or not to stop the machine for a possible paper jam when a misalignment of 5 mm or more is detected. You can also specify whether or not to display a message informing about a paper jam or an overlapped paper feed.

  • In order to enable the detection of paper jam caused by misalignment, [Mis-centering Detect JAM], provided in the expert adjustment function in paper setting, must also be set to [Detect].

  1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

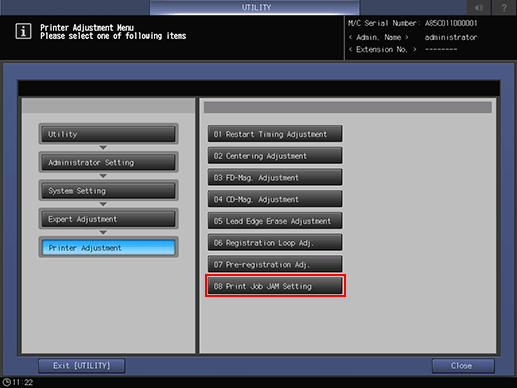

  2. Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [Printer Adjustment], and [Print Job JAM Setting] in sequence.

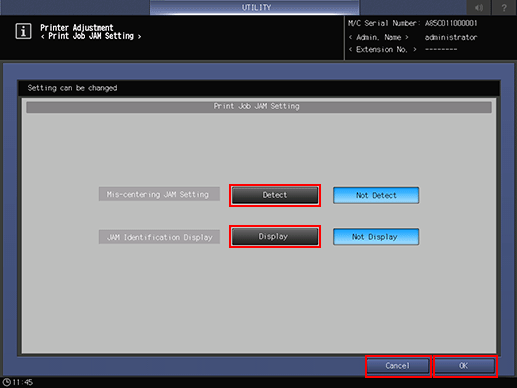

    The [Print Job JAM Setting] screen is displayed.

  3. To make the machine stop when it detects a misalignment of 5 mm or more, select [Detect].

  4. To display a message informing about a paper jam or an overlapped paper feed, select [Display].

  5. Press [OK] to complete the setting.

    To cancel the change, press [Cancel]. In either case, the screen returns to the [Printer Adjustment Menu] screen.
