LCT Banner Paper Registration Speed Adjustment: Adjusting the Registration Speed of Large Capacity Unit LU-202XL

Adjust the registration speed of Large Capacity Unit LU-202XL. This option is available when image lines occur or thick paper is used.

This button is displayed only when Large Capacity Unit LU-202XL is mounted on this machine.

Objects of Adjustment: Tray 3 (Large Capacity Unit LU-202XL)

Adjustment Range: -15 (Lower the registration speed) to +5 (Heighten the registration speed) (1 step = 0.1%)

  1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

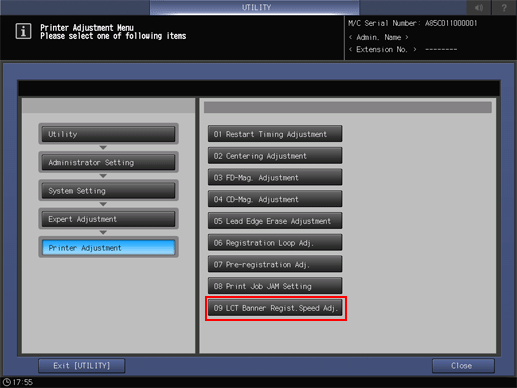

  2. Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [Printer Adjustment], and [LCT Banner Regist. Speed Adj.] in sequence.

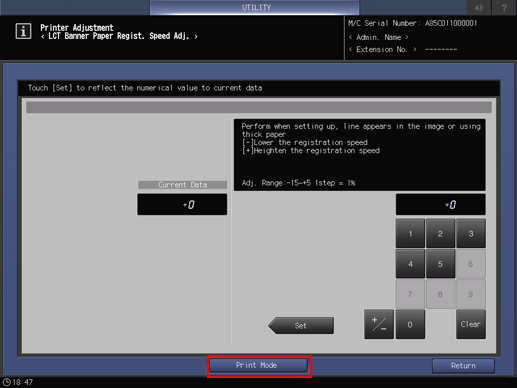

    The [LCT Banner Paper Regist. Speed Adj.] screen is displayed.

  3. Press [Print Mode].

    The [PRINT MODE] screen is displayed.

  4. Select A3 paper, then press Start on the control panel.

    A sample pattern will be output.

  5. Press [Exit PrintMode] to return to the [LCT Banner Paper Regist. Speed Adj.] screen.

  6. Check the sample pattern.

  7. If any adjustment is required, enter the desired adjustment value using the touch panel keypad.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

  8. Repeat steps 3 to 7 until the desired result is obtained.

  9. Press [Return] to return to the [Printer Adjustment Menu] screen.
