Front & Back Density: Setting the Adjustment Value for Transfer Output Voltage

Specify the adjustment value for front and back transfer output voltage automatically set by the machine.

Adjustment Range: -30 to +30%

  1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

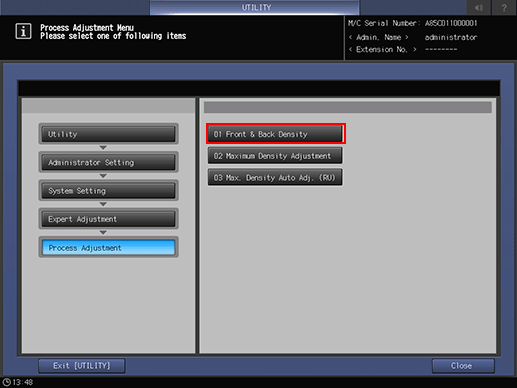

  2. Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [Process Adjustment], and [Front & Back Density] in sequence.

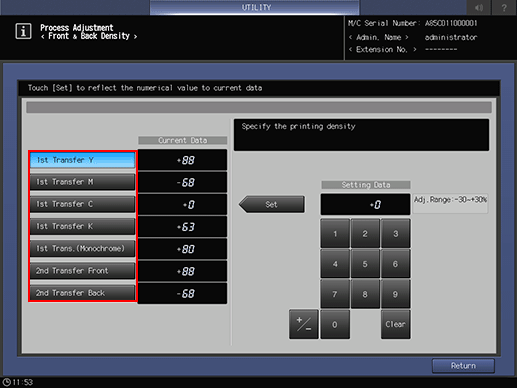

  3. Select the item to be adjusted.

  4. Use the touch panel keypad or the keypad on the control panel to enter the setting data.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the current value.

  5. Press [Return] to return to the [Process Adjustment Menu] screen.
