ADF Original Stop Pos. Adj.: Adjusting the Position to Start Scanning on the ADF and the Image Position in the Crosswise Direction
Adjust the position to start scanning on the ADF and the image position in the crosswise direction.
Adjust the scanning start position after you have completed [ADF Adjustment] - [FD-Mag. Adjustment]. Adjust the image position in crosswise direction after completing [Printer Adjustment] - [Centering Adjustment].
Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

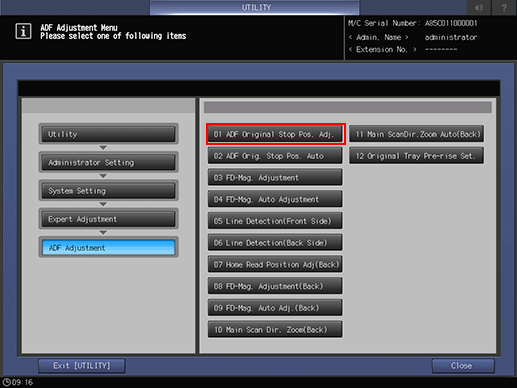

Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [ADF Adjustment], and [ADF Original Stop Pos. Adj.] in sequence.
The [ADF Original Stop Position Adj.] screen is displayed.
For details about subsequent operations, refer to ADF Original Stop Pos. Adj.: Adjusting the Position to Start Scanning on the ADF and the Image Position in the Crosswise Direction.
