Auth. Device Setting: Setting the Authentication Device

Authentication Method: Specifying the IC Card to Be Used with the Authentication Device

To use the Authentication Unit AU-201S, you must first specify the IC card to be used and set the operation for authentication.

  1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

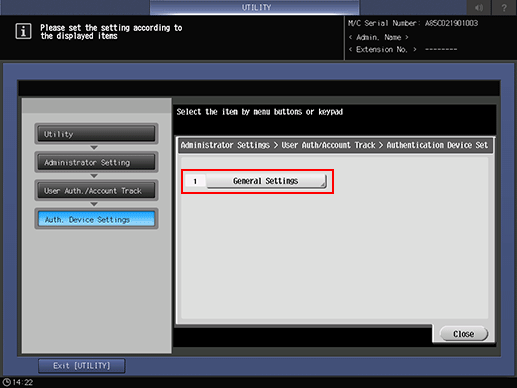

  2. Press [User Auth./Account Track] on the [Administrator Setting Menu] screen, and then press [Auth. Device Setting] and [General Settings] in sequence.

    The [General Settings] screen is displayed.

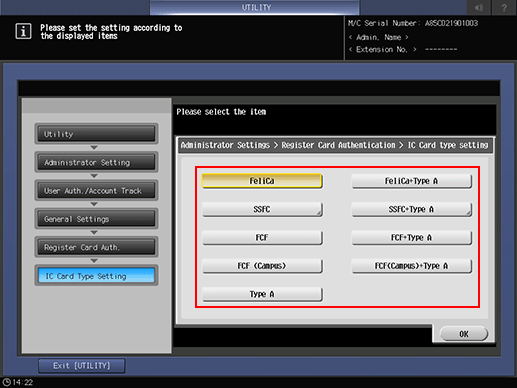

  3. Press [Card Authentication] and [IC Card Type Setting], then select the IC card to use.

    • Press [OK] to complete the setting.

  4. Select [Operation Settings].

    • Select [Card Authentication] if you want to use only the IC card for authentication. To use both IC card and password for authentication, select [Card Authentication + Password].

  5. Press [OK] to complete the setting.

    The screen returns to the [General Settings] screen.
