Output Alignment Operation: Selecting Output Alignment Operation

Select output alignment operation for exit guides.

The output adjustment plates align the output sheets in the crosswise direction on the main tray.

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

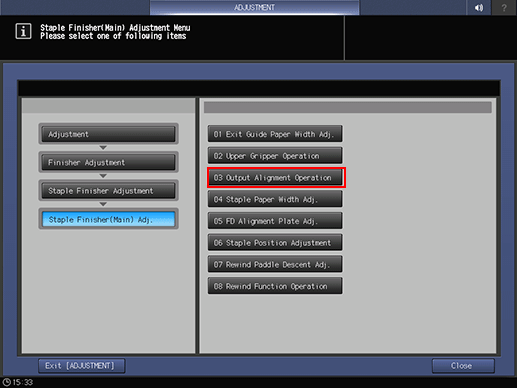

  2. Press [Finisher Adjustment], [Staple Finisher Adjustment], [Staple Finisher(Main) Adj.], and [Output Alignment Operation] in sequence.

  3. For output alignment operation, select [Auto], [ON], or [OFF].

    • Auto (Default): This option determines whether or not to activate this function based on the control setting before performing the operation.
      ON: Same as above ([Auto])
      OFF: This option deactivates the function for all type of paper. Selecting [OFF] stops the operation for output alignment, thus lowering the machine's noise. It also accelerates the switching between finisher modes, such as from staple mode to punch mode.

  4. Press [OK].

    The screen returns to the [Staple Finisher(Main) Adjustment Menu] screen.
