Periodical Both Sides Adj.
Configure settings for the periodical both-side adjustment. This menu item is to be displayed on the machine mounted with Intelligent Quality Optimizer IQ-501.
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.
Press [Quality Adjustment] and [Periodical Both Sides Adj.] in sequence.

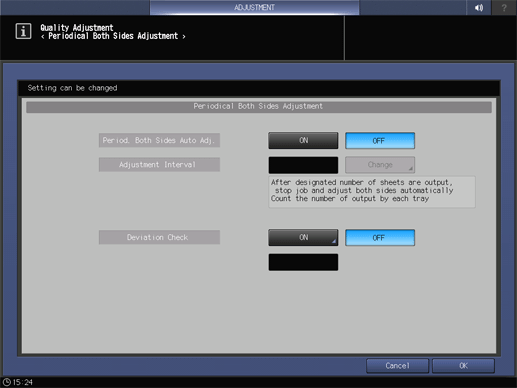

Change any setting as needed.
Menu item
Description
Setting value:
[Period. Both Sides Auto Adj.]
Allows you to select whether to periodically output charts and make the both-side adjustment when printing of the number of sheets specified in [Adjustment Interval] is completed.
If you select [ON], you can set [Periodical Adjustment] to [ON] or [OFF] for each tray in the [AutoMeasure] tab of the [Both Sides Adjust] screen.
ON, OFF (Default)
[Adjustment Interval]
Specify the interval to automatically make the both-side adjustment.
If you select [ON] in [Period. Both Sides Auto Adj.], you can press [Change] to specify 100 to 9,999 sheets. (Default: 500 sheets)
[Deviation Check]
Select whether to check a deviation.
ON, OFF (Default)
If you select [ON], you can specify the defined value (deviation level) used to judge that a deviation occurs. The defined value between 0.5 mm and 10.0 mm can be specified. (Default: 2.0 mm)
Press [OK].

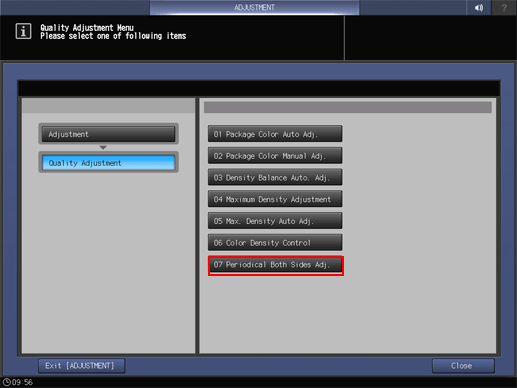

The screen returns to the [Quality Adjustment Menu] screen.
