Fold Skew Adjustment: Adjusting the Adjustment Plate Insertion

Adjust the adjustment plate insertion in Saddle Stitcher SD-513. This adjustment is available for each of 1-sheet folding or multi-sheet folding.

Objects of Adjustment: Offset for All Size, SRA3 , A3 , B4, SRA4 , A4 , B5 , 12 18 , 11 17 , 8.5 14 , 8.5 11 , 8 13 , 8K , 16K , PI, Custom (380 to 488 mm), Custom (257 to 379 mm), 13 19

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

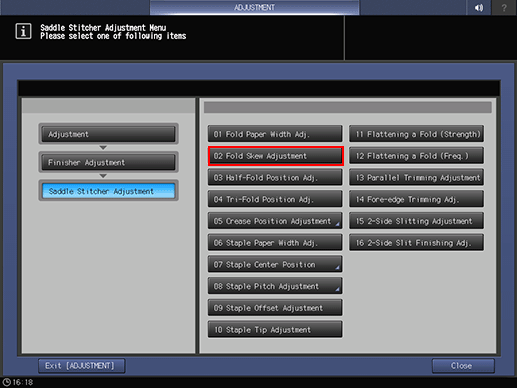

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], and [Fold Skew Adjustment] in sequence.

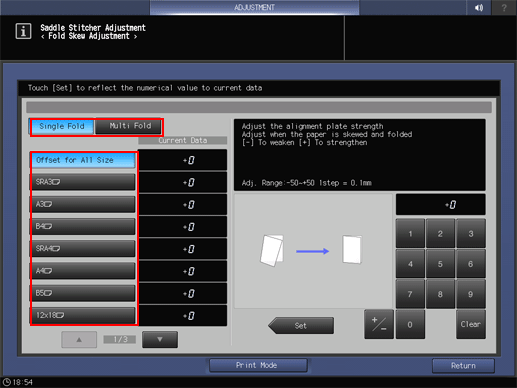

  3. Select [Single Fold] or [Multi Fold], then select the target size button.

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Check the skew of the folding line.

  8. If any adjustment is required, press [Exit PrintMode] to return to the [Fold Skew Adjustment] screen.

  9. Use the touch panel keypad to enter the set value.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -50 ([To weaken]) to +50 ([To strengthen]) (1 step = 0.1 mm)

  10. Repeat steps 4 to 9 until the desired result is obtained.

  11. Press [Return].

    The screen returns to the [Saddle Stitcher Adjustment Menu] screen.
