Perfect Binding Cover Crease Position

Move the perfect binding cover crease position in Creaser Unit CR-101 mounted on Saddle Stitcher SD-513 (With Perfect Binder PB-503 mounted). The perfect binding cover crease position is controlled so that the position matching the perfect binding cover spine width is set to the reference position. For both the first crease position and the second crease position, adjust the distance from the paper edge to the crease position.

Objects of Adjustment: Offset for All Size, SRA3 , A3 , B4 , SRA4 , A4 , B5 , 12 18 , 11 17 , 8.5 14 , 8.5 11 , 8 13 , 8K , 16K , Custom (380 to 488 mm), Custom (257 to 379 mm), 13 19

  • If a numeric value is specified for [Offset for All Size], it is applied to all paper sizes. With a specific paper size selected,the set value becomes the sum of the entered value and the value previously specified for [Offset for All Size].

  1. Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

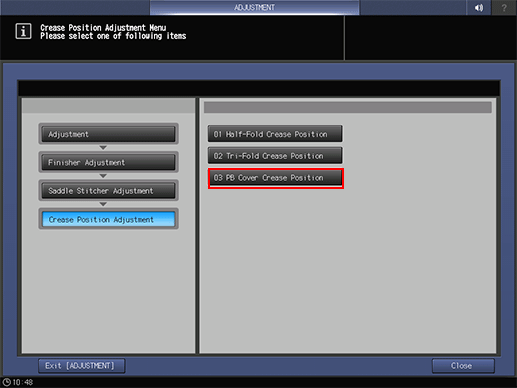

  2. Press [Finisher Adjustment], [Saddle Stitcher Adjustment], [Crease Position Adjustment], and [PB Cover Crease Position] in sequence.

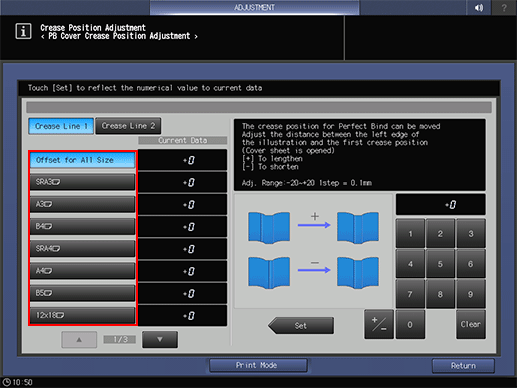

  3. Select the size to be adjusted using [] or [].

  4. Press [Print Mode].

  5. Load the paper with the size to be adjusted, then select that tray.

  6. Press Start on the control panel.

    A sample pattern will be output.

  7. Measure misalignment between the folding line on the output paper and crease positions.

  8. If any adjustment is required, press [Exit PrintMode] to return to the [PB Cover Crease Position Adjustment] screen.

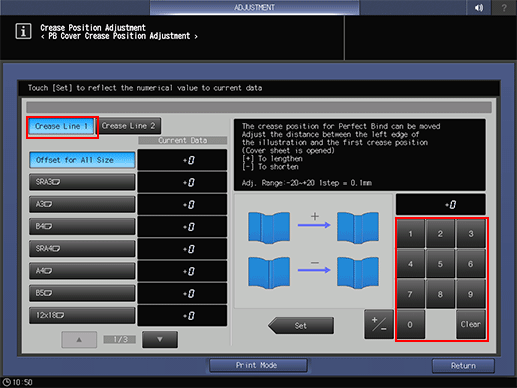

  9. Select [Crease Line 1], then enter the set value using the keypad on the screen.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

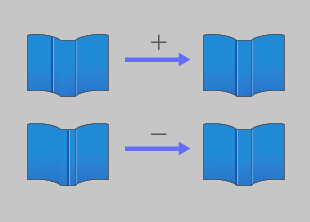

    • Adjustment Range: -20 ([To shorten]) to +20 ([To lengthen]) (1 step = 0.1 mm)

    • Adjust the length from the paper edge on the left side of the top face of the perfect binding cover to the first crease position.

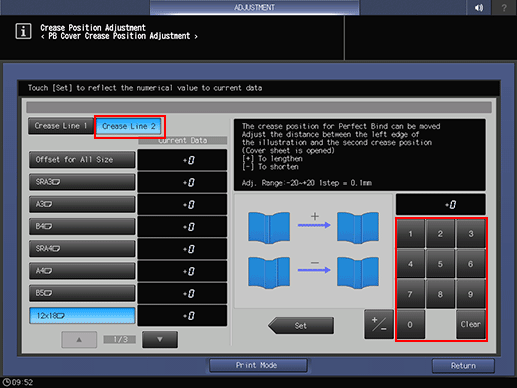

  10. Select [Crease Line 2], then enter the set value using the keypad on the screen.

    • Use [+/-] to specify the value to be positive or negative.

    • Press [Set] to change the Current Value.

    • Adjustment Range: -20 ([To shorten]) to +20 ([To lengthen]) (1 step = 0.1 mm)

    • Adjust the length from the paper edge on the left side of the top face of the perfect binding cover to the second crease position.

  11. Repeat steps 4 to 10 until the desired result is obtained.

  12. Press [Return].

    The screen returns to the [Crease Position Adjustment Menu] screen.
