Paper Width Adjustment: Adjusting the Misalignment of the Printed Papers in the Crosswise Direction on the Relay Stacker
Adjust the position of the exit guides in the crosswise direction of the Relay Unit RU-510. If any punch holes are misaligned in the crosswise direction, make this adjustment.
Objects of Adjustment: Offset for All Size
Press [Adjustment] on the [MACHINE] screen to display the [Adjustment Menu] screen.

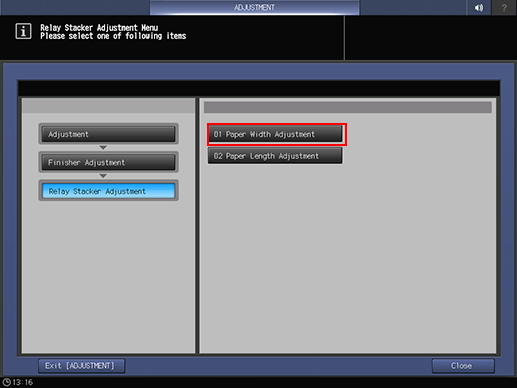

Press [Finisher Adjustment], [Relay Stacker Adjustment], and [Paper Width Adjustment] in sequence.
Press [Print Mode].
Load A4 paper in a tray, and select that tray.
Set the print quantity to 10, then press Start on the control panel.
A punched sample pattern is printed.
Check for any misalignment or inconsistency of punch holes in the crosswise direction.
Press [Exit PrintMode].
The screen returns to the [Paper Width Adjustment] screen.
If any adjustment is required, use the touch panel keypad to enter the set value.

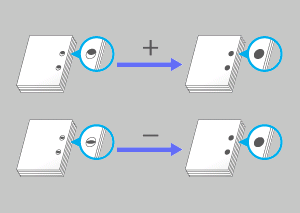

Adjustment Range: -20 ([To reduce the randomness]) to +20 ([To reduce the tilts]) (1 step = 0.1 mm)
Use [+/-] to specify the value to be positive or negative.
Press [Set] to change the setting with the Current Data.
Repeat steps 3 to 9 until the desired result is obtained.
Press [Return].
The screen returns to the [Relay Stacker Adjustment Menu] screen.
