Executing the Exact Color Calibration Wizard

By following the wizard, you can create a correction table with the Exact Color function and apply the correction table as feedback to the controller for enhanced color reproduction accuracy.

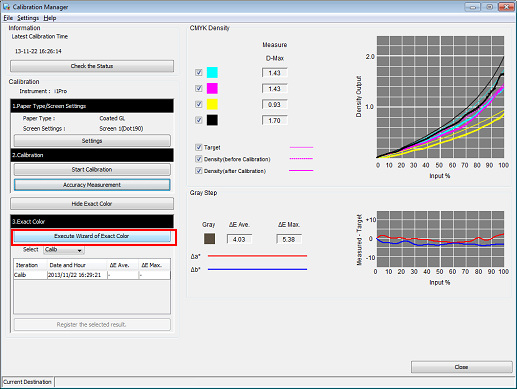

  1. On the [Calibration Manager] screen, click [Execute Wizard of Exact Color] under [3. Exact Color].

    The wizard for executing the Exact Color function starts and displays the [Operation steps] screen.

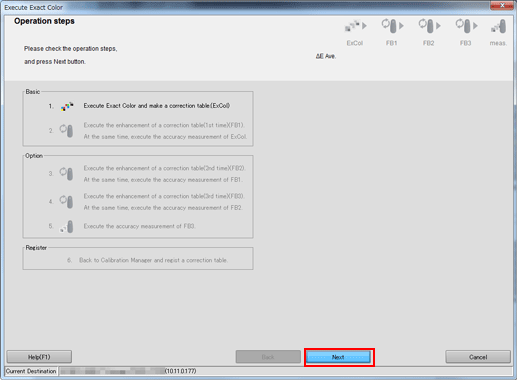

  2. On the [Confirmation of procedure] screen, click [Next].

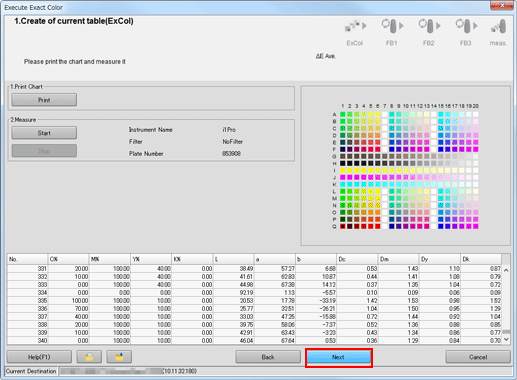

    The [1. Create of current table (ExCol)] screen is displayed.

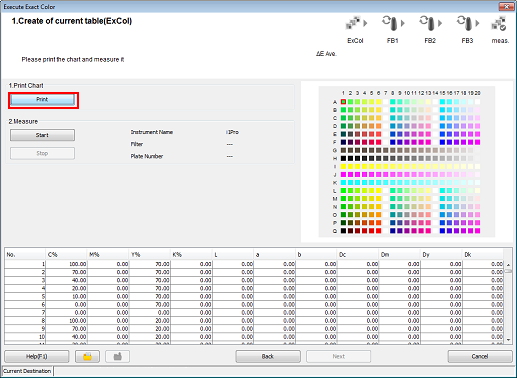

  3. Click [Print].

    Print the color chart that is to be measured using the instrument.

    A test chart is printed.

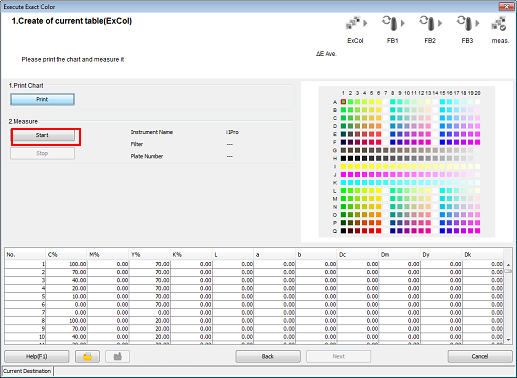

  4. Click [Start].

  5. Measure the chart using the instrument. After you finish the chart measurement, click [Next].

    Example: Measurement is performed using i1Pro.

    After the message, [Calculating] is displayed, the [Operation steps] screen is displayed.

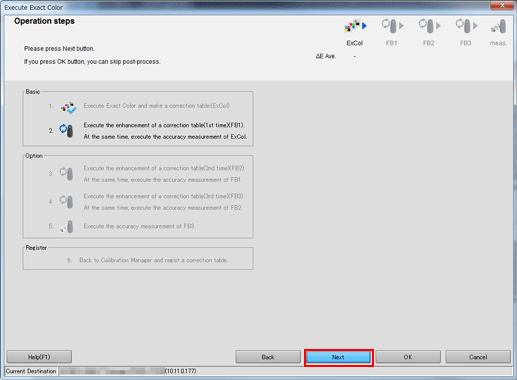

  6. On the [Confirmation of procedure] screen, click [Next].

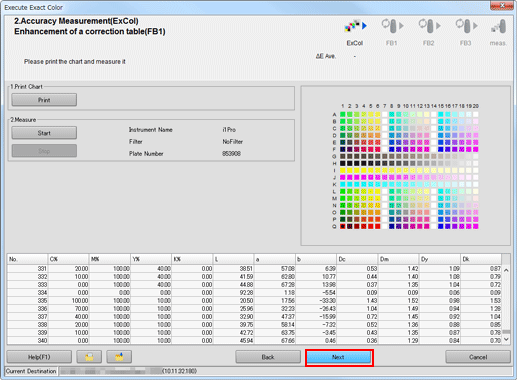

    The [2. Accuracy Measurement(ExCol) Enhancement of a correction table(FB1)] screen is displayed.

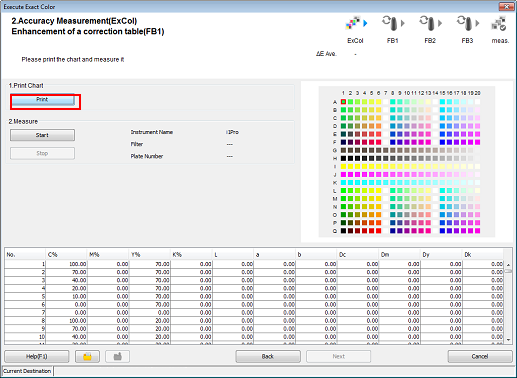

  7. Click [Print].

    Print the color chart that is to be measured using the instrument.

    A test chart is printed.

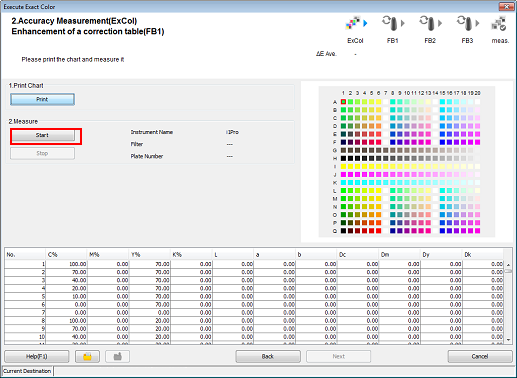

  8. Click [Start].

  9. Measure the chart using the instrument. After you finish the chart measurement, click [Next].

    The [Operation steps] screen is displayed.

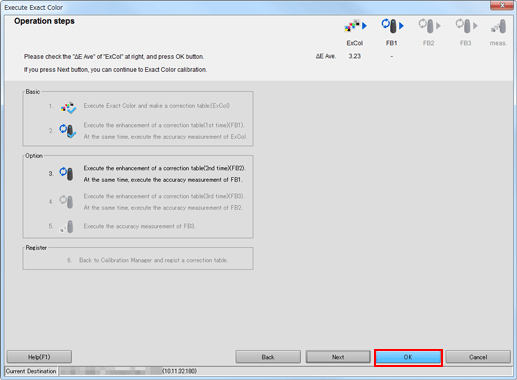

  10. Click [OK].

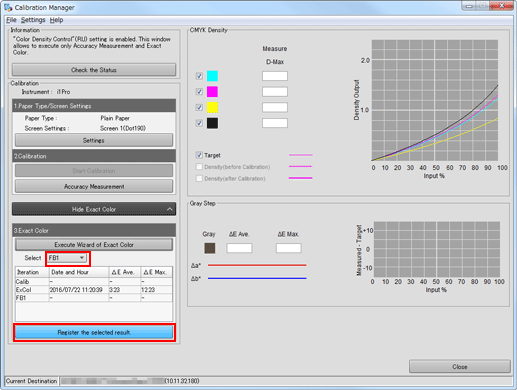

  11. On the [Calibration Manager] screen, select the measurement data and check the graphs. After selecting the data to be registered, click [Register the selected result.].

    • By registering the acquired calibration data in the image controller, this data can be applied when printing.

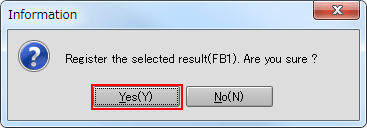

  12. Click [Yes] on the [Information] screen.

    The calibration table is registered in the image controller.
