Punch: Adjusting the Tilt of Punch Position
You can adjust the paper deflection (the amount of paper loop) of the registration roller to fix the tilt of punch hole position.
As an example, this section explains how to decrease the paper deflection of the registration roller and adjust the tilt of punch hole position by using the Finisher FS-532 mounted Punch Kit PK-522.
• Meaning and Purpose of Punch Position Tilt Adjustment
When the punch hole position is tilted, this function allows you to adjust the tilt of punch hole position by specifying the value of paper loop of the registration roller.
Negative values decreases the paper deflection to adjust the tilt.
Positive values increases the paper deflection to adjust the tilt.
• When to perform
When the punch hole position is tilted
•Intended Environment
Image Controller | Image Controller IC-603 |
Mounted finisher | Finisher FS-532 mounted Punch Kit PK-522 |
* The sample screen may be different from the actual display depending on your system environment.
Check the tilt of desired punch hole position (1) and the current punch hole position (2).

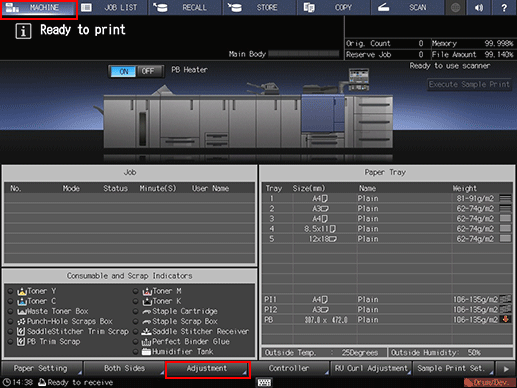

On the touch panel of the main body, press [Adjustment] on the [MACHINE] screen.
Press [Finisher Adjustment] on the [Adjustment Menu] screen.
Press [Staple Finisher Adjustment] on the [Finisher Adjustment] menu.
Press [Staple Finisher (Punch) Adj.] on the [Staple Finisher Adjustment] menu.

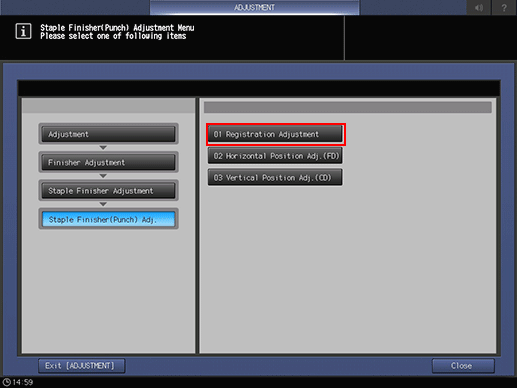

Press [Registration Adjustment] on the [Staple Finisher (Punch) Adj.].
Enter the adjustment value and press [Set].
Example: decrease the paper deflection (the amount of paper loop) of the registration roller by 2.5 mm to adjust the tilt of punch hole position.
Item
Setting
Current Data
Decreasing the amount of paper loop of the registration roller by 2.5 mm (-25)
Press [+/-], [2], [5], and [Set] to enter the value [-25]. This decrease the paper deflection of registration roller by 2.5 mm.
Press the keypad on the screen to set the value.
Use [+/-] to specify the value to be positive or negative.
The values are in 0.1 mm increments. (1 = 0.1 mm)
Pressing [Print Mode] switches the mode to print mode, which allows you to print the original.
Print the original again and check the tilt of punch hole position.
Repeat the above steps until the desired punch hole position is obtained. Increasing or decreasing the amount of paper loop allows you to adjust the tilt of punch hole position.
