Creating a Color Configuration

Associate the created target setting with a profile set, and create a color configuration. This section describes how to use an existing profile set.

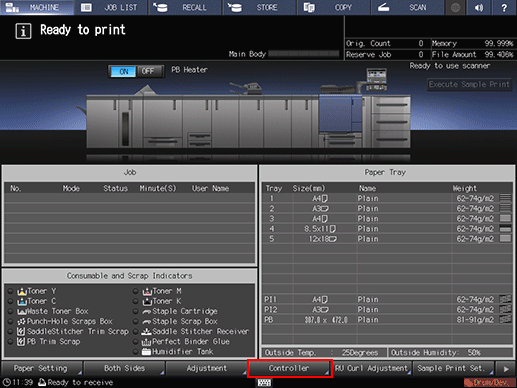

1. Press [Controller].

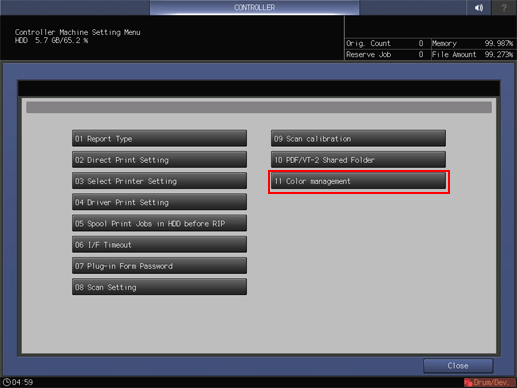

2. Press [Color management].

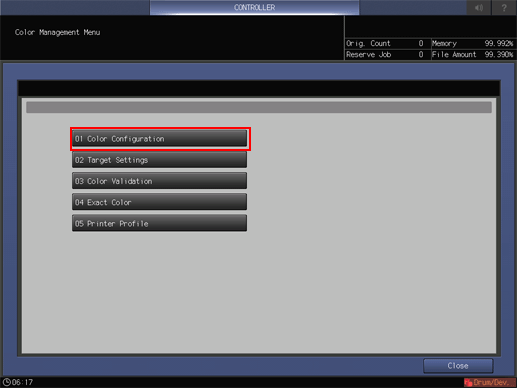

3. Press [Color Configuration].

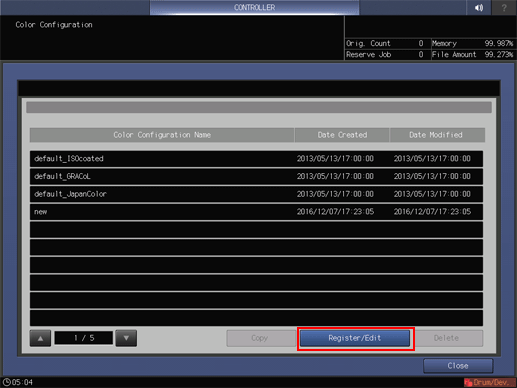

4. Press [Register/Edit].

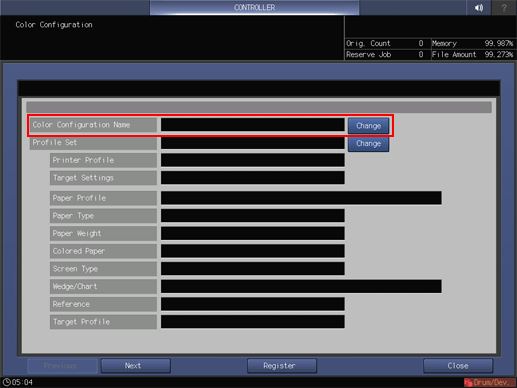

5. Press [Change] of [Color Configuration Name], and then create a name of a color configuration.

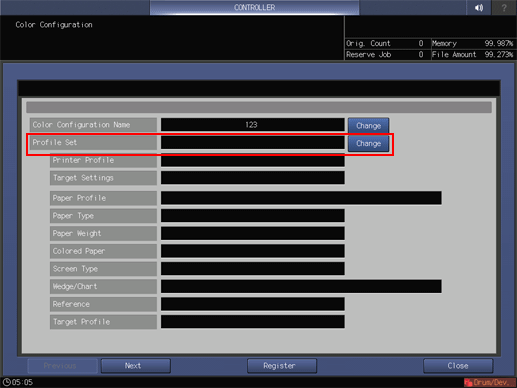

6. Press [Change] of [Profile Set].

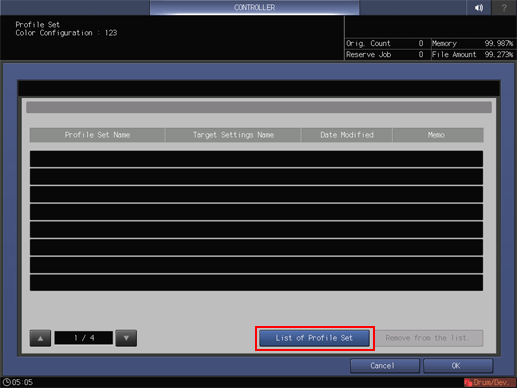

7. Press [List of Profile Set].

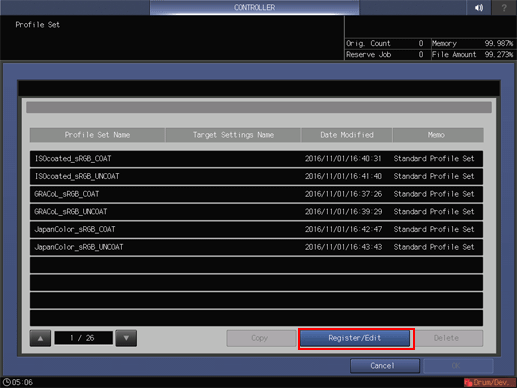

8. Select a profile set, and then press [Register/Edit].

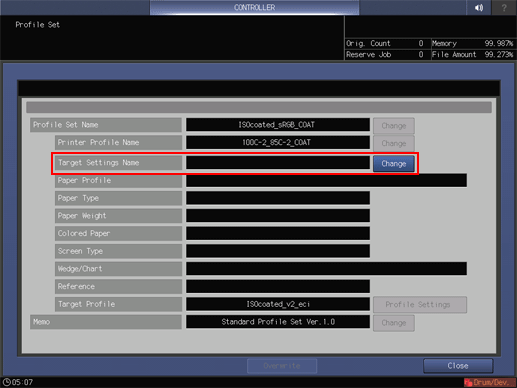

9. Press [Change] of [Target Settings Name], and then select the target setting that you created in Creating a Target Setting.

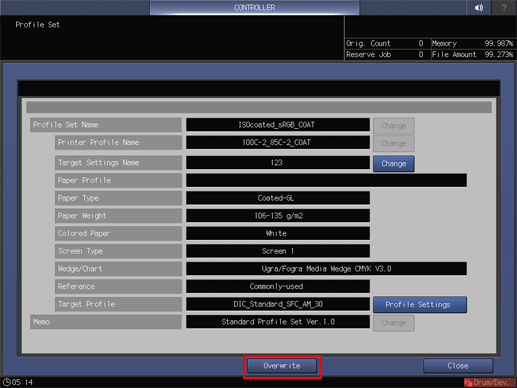

10. Press [Overwrite].

    When processing is completed, a message is displayed.

11. Press [Close].

    A list of profile sets is displayed.

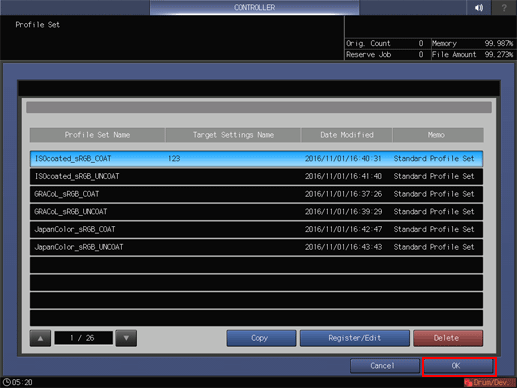

12. Select a profile set, and then press [OK].

13. Press [Next], and then specify each item.

14. Press [Register].

    When processing is completed, a message is displayed.

15. Press [Close].
