Replenishing Paper Feeder Unit PF-707 or Paper Feed Unit PF-707m with Paper
To use paper other than loaded in a tray, change the setting of that tray in [Paper Setting] from the [MACHINE] screen or [COPY] screen.
Withdraw the tray to be replenished with paper.
Trays cannot be withdrawn when the machine is not powered. Be sure to turn the sub power switch ON.
Only one tray can be withdrawn at a time.
To load a different size of paper, proceed to step 2. To load the same size as loaded before, proceed to step 5.
Fully widen the side guide plates and rear guide plate.

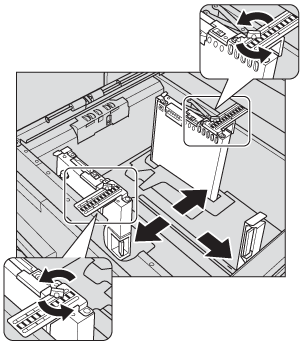

Turn the two side guide fixing knobs of the side guide plates counterclockwise to loosen them.
Fully widen the side guide plates and rear guide plate while pressing the lock release lever of each guide plate.
When moving the side guide plates, be sure to hold the lock release lever of the front one and the handle of the rear one. If moved only with the front side guide plate, the side guide plates may not be fixed in position.
Align the side guide plates to the loaded paper.

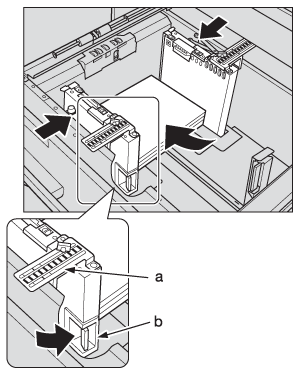

Place about 100 sheets of paper with the print side up. While pushing the lock release lever of the front side guide plate, align both side guide plates to the paper and position them according to the paper size indicator provided on the guide holding plate.
a: Paper size indicator
b: Lock release lever

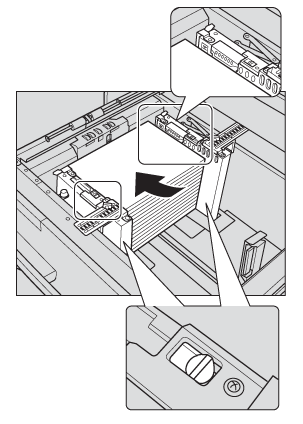

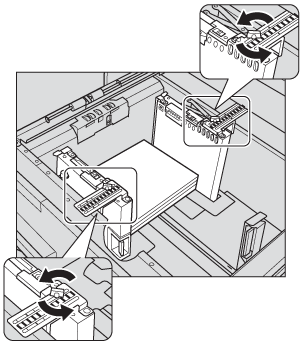

Turn the two guide fixing knobs of the side guide plates clockwise to fix the guides.
Load paper with the print side up.
Align the stack of paper to the left side of the tray.
Do not load above the limit level indicated on the side guide plate of the tray.
The two side guide plates are provided with small size guides. Be sure to open them only when loading paper of the width less than 139.7 mm / 5.5".
For details about how to use small size guides, refer to Loading Small-Size Paper into Paper Feeder Unit PF-707 or Paper Feed Unit PF-707m.
Align the rear guide plate to the paper.
Press the lock release lever of the rear guide plate to move it to the edge of the paper.
Be sure that the rear guide plate is securely aligned to the paper. If any gap is left between the rear guide plate and paper, the machine cannot detect the correct paper size, and machine trouble may be caused.
Push in the tray until it locks into place.
The Amount indicator of the tray will change from
to
on the [MACHINE] screen and [COPY] screen.Do not push the tray into the machine forcibly. Otherwise, machine trouble may be caused due to unexpected shock.
