Installing Feeding Extension Tray
Mount Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) in Multi Bypass Tray MB-506.

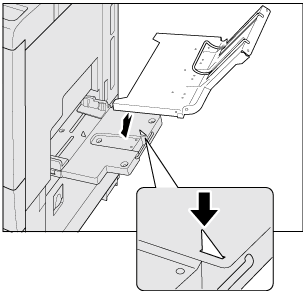

Push down the paper size sensor of Multi Bypass Tray MB-506 and put Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) on the bypass tray from top right to cover it.

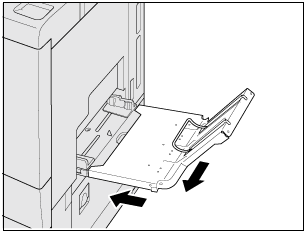

Press the covered Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) into the machine.

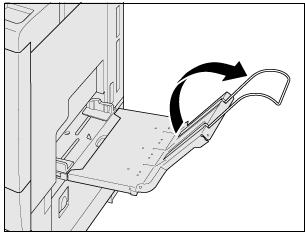

Extend the extension guide.

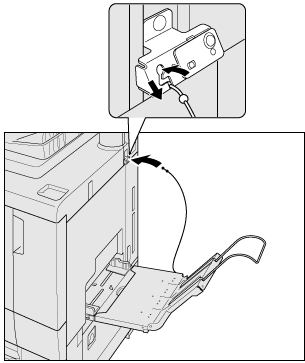

Hook the top of the wire rope (ball end) to the fitting on the machine.
