Installing Output Extension Tray (Finisher FS-531 / Finisher FS-612)

Install Banner Tray Unit MK-740 (output extension tray) into Finisher FS-531 / Finisher FS-612.

  1. Extend the tray extension of the sub tray.

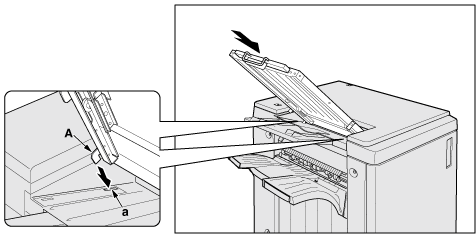

  2. Insert the brackets (A) of Banner Tray Unit MK-740 (output extension tray) into the slots (a) of the sub tray.

  3. Adjust the position and insert the brackets (B) of Banner Tray Unit MK-740 (output extension tray) into the slots (b) of the sub tray.

  4. Extend the tray extension of Banner Tray Unit MK-740 (output extension tray).
