Loading Banner Paper into Feeding Extension Tray

Sizes and weights of the Banner paper that can be used are as follows.

  • Banner paper size: Widthwise 100 mm to 330.2 mm *, Lengthwise 487.8 mm to 1200 mm / Widthwise 3.94" to 13" *, Lengthwise 19.2" to 47.24"
    *Banner paper of 279 mm / 10.98" or narrower in width may not be correctly printed depending on the paper type or environment.

  • Banner paper weight: 128 g/m2 to 256 g/m2 / 34 lb Bond to 68 lb Bond

  • Number of sheets that can be loaded in the feeding extension tray is 10 (1 sheet for coated paper).

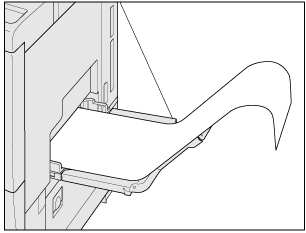

  1. Load banner paper into Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m (feeding extension tray) with the print side up.

  2. Align both side guide plates of Bypass Tray to the banner paper.

    • To prevent sheets from being adhered, separate sheets one by one, then load them by the required number of sheets.
      If a long period has lapsed while paper remains loaded in a tray, separate sheets one by one and reload them in the tray before printing.
