Home ConfigurationExternal Machine

External Machine

No.

Name

Description

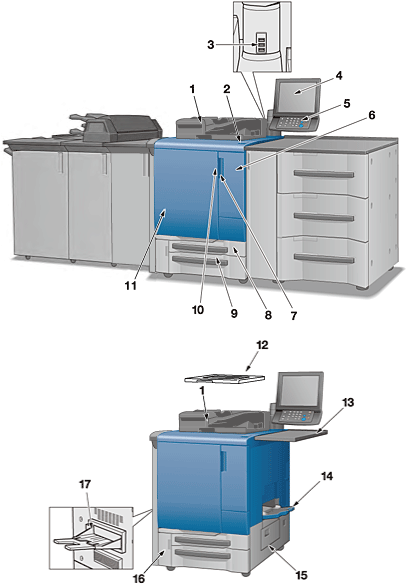

1

Dual Scan Document Feeder DF-706 (ADF) (Option)

Automatically feeds multiple originals on a sheet basis to scan data.
Even a 2-sided original can be scanned by one paper feed operation without reversing paper.

2

Sub power switch

Turns machine power on/off when pressed.

3

Service port (USB 2.0 Type A  3)

Used to connect devices such as an external storage medium (USB flash drive), keyboard, and mouse.

This port is available for low-power devices only. Please provide an external supply of power for devices that require a large amount of power.

4

Touch panel

Displays screens such as the [MACHINE] screen to allow various settings and machine operations. Also, operation or troubleshooting procedures can be provided.

5

Control panel

Used for various settings and machine operations.

6

Toner supply door

Opens to allow toner supply.

7

Toner supply door handle

Pulled to the right to open the toner supply door.

8

Tray 1

Holds 500 sheets (80 g/m2 / 21 lb Bond) of print paper.

9

Tray 2

Holds 1000 sheets (80 g/m2 / 21 lb Bond) of print paper.

10

Main body front door handle

Pulled to the left to open the main body front door.

11

Front door

Opens to allow removal of paper jam or to turn on/off the main power switch.

12

Original Cover OC-511 (Original cover) (Option)

Opens to place an original on the original glass, then closes to hold it in position.

13

Working Table WT-511 (option)

Provides a convenient workspace for documents before and after copying.

14

Multi Bypass Tray MB-506 (option)

Opens to use copy paper other than that which is loaded in the machine trays. Up to 250 sheets (80 g/m2 / 21 lb Bond) can be loaded.

15

Right side door

Opens rightward for removal of paper jam.

16

Waste toner box replacement door

Opens to allow replacement of the waste toner box.

17

Output Tray OT-511 (option)

Holds sets output in non-offset or offset mode.

18

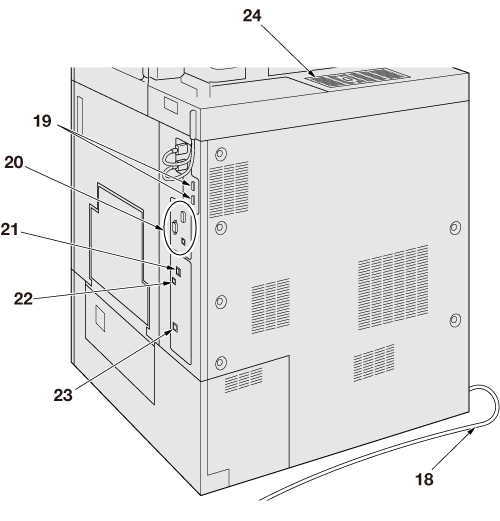

Power cord

Supplies the main body with electric power.

19

IQ Optimizer Connection Port

Used to connect Intelligent Quality Optimizer IQ-501 by cable.

20

Video Interface Kit Connection Port

Used to mount Video Interface Kit VI-509 (optional).

* Video Interface Kit VI-509 (optional) is required to connect Image Controller IC-313, Image Controller IC-417, or Image Controller IC-314 to this machine by cable.

21

Service port (USB 3.0/2.0 Type A x 1)

Used to connect devices such as an external storage medium (USB flash drive, USB-HDD), keyboard and mouse.

This port is available for low-power devices only. Please provide an external supply of power for devices that require a large amount of power.

22

Service port (USB 2.0 Type B 1)

Connect this machine to the computer using a USB cable in order to use it as a local printer.

23

Network port (10Base-T, 100Base-TX, 1000Base-T)

Connected with an Ethernet cable to operate the machine, or to use the machine as a network printer/scanner.

24

Dust proof filter

Attached for cooling fan in order to keep out dust.

25

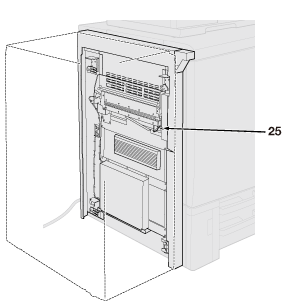

Lock release lever

Pressed to the back to open downward for removal of paper jam.

The Lock release lever can be reached from the left side optional equipment.
