Paper Feeder Unit PF-602m

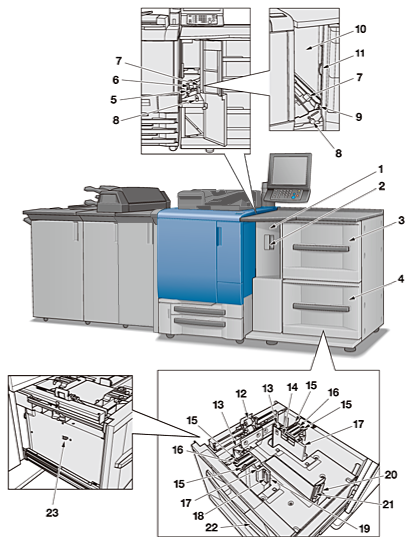

No. | Name | Description |
|---|---|---|
1 | Tray left side door | Opens for removal of paper jam from the right side door or from the paper feeder unit trays. |
2 | Tray left side door knob | Held to open the tray left side door. |
3 | Upper tray (Tray 3) | Holds 3,000 sheets (80 g/m2 / 21 lb Bond) of standard, custom, or tab paper sizes. Load print paper of the weight from 62 g/m2 to 256 g/m2 / 16 lb Bond to 68 lb Bond. |
4 | Lower tray (Tray 4) | Holds 3,000 sheets (80 g/m2 / 21 lb Bond) of standard, custom, or tab paper sizes. Postcard can be loaded. Load print paper of the weight from 62 g/m2 to 300 g/m2 / 16 lb Bond to 81 lb Bond. |
5 | Lever[PF5] | Opens leftward for removal of paper jam. |
6 | Horizontal transport door | Opens upper-leftward for removal of paper jam. |
7 | Lever[PF2] | Opens upper-leftward for removal of paper jam. |
8 | Knob[PF4] | Turned to allow removal of paper jam. |
9 | Lever[PF3] | Opens upward for removal of paper jam. |
10 | Vertical transport door | Opens leftward for removal of paper jam. |
11 | Lever[PF1] | Opens leftward for removal of paper jam. |
12 | Feed roller | Feeds copy paper sheet by sheet into the main body. |
13 | Small size guides (2 pieces) | Open inward for print paper of the width less than 139.7 mm / 4.5". |
14 | Air nozzle | Blows air to slightly float the paper. |
15 | Side guide lock knobs (4 pieces) | Turned to move or fix the side guide plates. |
16 | Paper size indicator | Indicates an appropriate position of side guide plates for the paper size to be loaded. |
17 | Side guide plates (2 pieces) | Aligned to the edges of loaded paper. |
18 | Side guide lock release lever | Pushed backward to release the lock in order to move side guide plates. |
19 | Side guide knobs (2 pieces) | Held together with the side guide lock release lever in order to move the side guides. |
20 | Rear guide plate | Aligned to the rear edge of loaded paper. |
21 | Rear guide lock release lever | Pushed to release the lock in order to move the rear guide plate. |
22 | Tray handle | Held to withdraw the tray. |
23 | Bottom plate fixing knob | Slid to the rear side and turned clockwise to keep the bottom plate elevated to the top position. |
