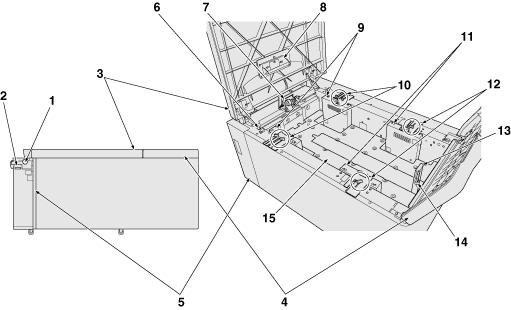

Large Capacity Unit LU-202XL
No. | Name | Description |
|---|---|---|
1 | Knob[LC1] | Turned clockwise for removal of paper jam. |
2 | Lever[LC2] | Opens downward for removal of paper jam. |
3 | Top door (Left) | Opens to allow paper supply or removal of paper jam. |
4 | Top door (Right) | Opens to allow paper supply or removal of paper jam. |
5 | Left door | Opens to allow removal of paper jam. |
6 | Tray bottom plate lowering button | Pressed to lower the tray bottom plate to allow paper supply. |
7 | Feed roller | Feeds copy paper into the main body. |
8 | Paper holder | Prevents paper floating or misalignment. |
9 | Side guide (Left) | Holds the sides of loaded paper. |
10 | Side guide knob (Left) (2 pieces for each) | Turned to move or fix the side guide (left). |
11 | Side guide (Right) | Holds the sides of loaded paper. |
12 | Side guide knob (Right) (1 piece for each) | Turned to move or fix the side guide (right). |
13 | Rear guide | Holds the rear end of loaded paper. |
14 | Rear guide lock release lever | Pushed to release the lock in order to move the rear guide plate. |
15 | Tray bottom plate | Goes up automatically as paper supply becomes low. Press tray bottom plate lowering button to lower it. |
