Saddle Stitcher SD-506

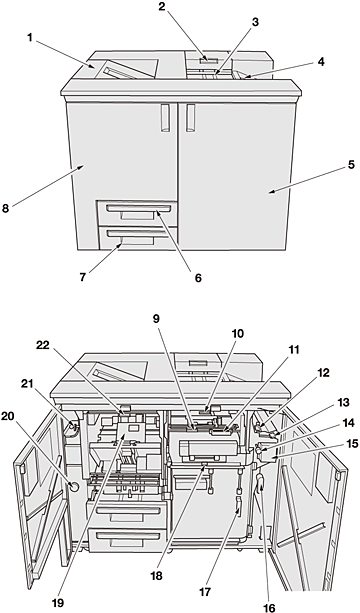

External view of Saddle Stitcher SD-506
No. | Name | Description |
|---|---|---|
1 | Saddle stitcher secondary (sub) tray | Holds sets not processed by Saddle Stitcher SD-506. |
2 | Multi Tri-Fold mode outlet cover handle | Opens upward for removal of paper jam. |
3 | Multi tri-fold mode tray | Holds sets output in Multi Tri-Fold mode. |
4 | Secondary (sub) tray | Holds sets delivered from the machine on the right side of Saddle Stitcher SD-506. |
5 | Saddle stitcher right side door | Opens to allow removal of paper jam. |
6 | Delivery tray | Withdrawn to hold sets output in Fold & Staple or Multi Half Fold mode. |
7 | Trim scrap box | Withdrawn for removal of waste trimmings. |
8 | Saddle stitcher left side door | Opens to allow staple supply or removal of paper jam. |
Internal view of Saddle Stitcher SD-506
No. | Name | Description |
|---|---|---|
9 | Lever[SD11] | Opens to allow removal of paper jam inside the folding unit. |
10 | Lever[SD3] | Opens downward for removal of paper jam. |
11 | Handle[SD10] | Held to withdraw the drawer for removal of paper jam inside the folding unit. |
12 | Lever[SD2] | Opens upward for removal of paper jam. |
13 | Lever[SD1] | Opens leftward for removal of paper jam. |
14 | Knob[SD6] | Turned clockwise to feed paper jam to the folding unit. |
15 | Jam position display | Indicates the position of paper jam by LED lamps. |
16 | Lever[SD7] | Opens rightward for removal of paper jam. |
17 | Handle[SD8] | Opens the cover to allow removal of paper jam. |
