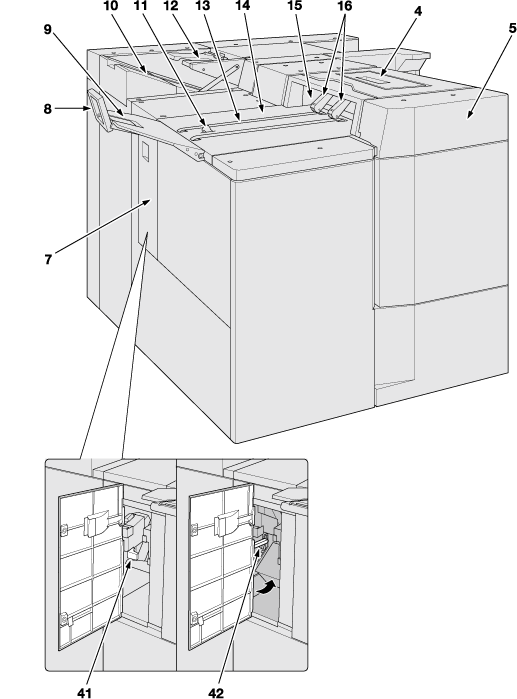

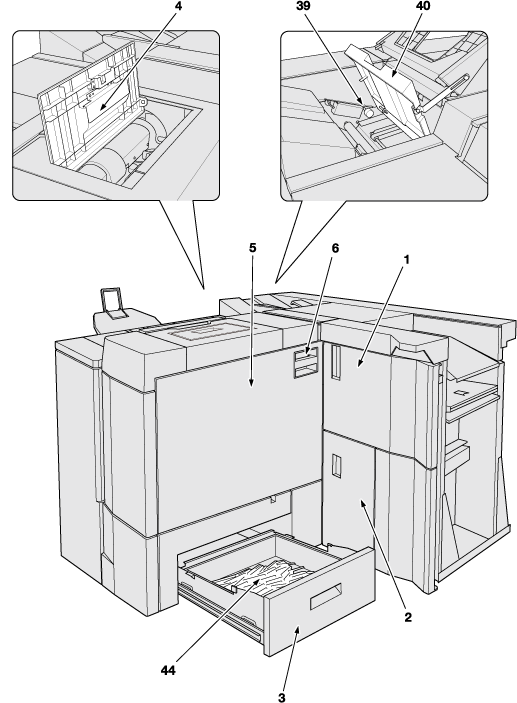

External view of Saddle Stitcher SD-513

No.

Name

Description

1

Saddle stitcher front door

Opens to allow removal of paper jam.

2

Slit scrap box door

Open this door to dispose of scraps into the Slit scrap box when the optional Trimmer Unit TU-503 is mounted on this machine.

3

Trim scrap tray

Pull out this tray to dispose of scraps into the Trim scrap box.

4

Clamp section upper door

Open this door to remove paper jammed in the folding unit or to clean the Conveyance belt.

5

Clamp section

Open this unit to clear paper jams in the fold conveyance unit, saddle stitcher unit, or half-fold unit. Open the Saddle stitcher front door before the Clamp section.

6

Clamp section handle

Hold the lock release lever of the handle when opening the Clamp section. When opening the Clamp section, do so while holding the lock release lever of the handle.

7

Folding outlet door

Open this door to clear paper jams in the fold output unit.

8

Stopper

Prevents sheets stacked in the Bundle exit tray from falling.

9

Delivery tray extension (tray)

Open this tray to output paper to the Bundle exit tray.

10

Secondary (sub) tray

Outputs paper from the unit in the right of this machine without performing Multi Half-Fold or Multi Tri-Fold. This tray is also used to output 2-side-slit or creased paper when Trimmer Unit TU-503 or Creaser Unit CR-101 is mounted on this machine.

11

Paper detection sensor

Detects paper conveyed through the Conveyance belt to prevent output paper from falling.

12

Tri-fold tray

Outputs paper folded in Multi Tri-Fold.

13

Conveyance belt

Conveys output paper to the left side.

14

Bundle exit tray

Stacks paper that is folded and stapled or folded in half on this machine.

15

Bundle exit tray outlet

Outputs paper that is folded and stapled or folded in half on this machine.

16

Output roller

Aligns to smoothly output paper that is folded and stapled or folded in half on this machine.

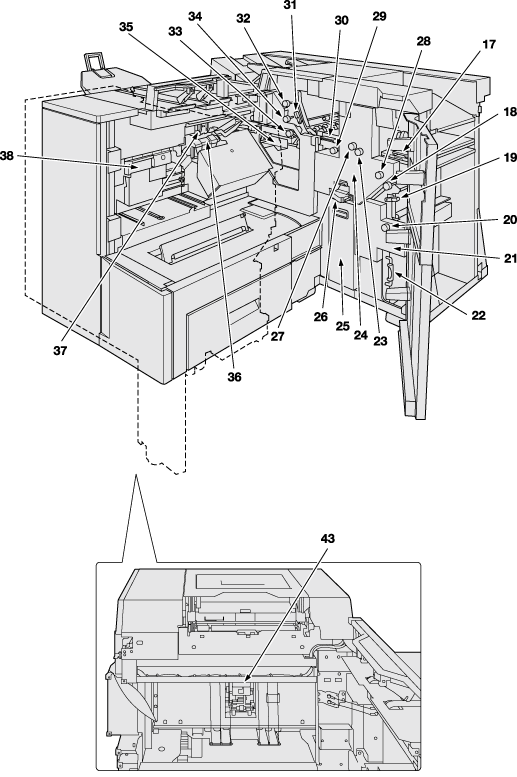

Internal view of Saddle Stitcher SD-513

No.

Name

Description

17

Lever[SD1]

Opens upward for removal of paper jam.

18

Knob[SD2]

Turn this knob to clear paper jams in Creaser Unit CR-101 or paper jams that occur when paper is being fed.

19

Lever[SD3]

Open this lever rightward to clear paper jams in Creaser Unit CR-101 or paper jams that occur when paper is being fed.

20

Knob[SD4]

Turn this knob to clear paper jams in Creaser Unit CR-101 or paper jams that occur when paper is being fed.

21

Creaser Unit CR-101 (option)

Makes creases on paper.

22

Lever[SD5]

Open this lever rightward to clear paper jams in Creaser Unit CR-101 or paper jams that occur when paper is being fed.

23

Knob[SD15]

Turn this knob clockwise to clear paper jams in Trimmer Unit TU-503.

24

Trimmer Unit TU-503 (option)

Trims both edges of paper.

25

Slit scrap box

Pull out this box to dispose of slitting scraps.

26

Scrap box lock release lever

Pull this to release the lock when pulling out the Slit scrap box.

27

Knob[SD16]

Turn this knob counterclockwise to clear paper jams in Trimmer Unit TU-503.

28

Knob[SD6]

Turned clockwise for removal of paper jam.

29

Knob[SD7]

Turn this knob counterclockwise to clear paper jams.

30

Lever[SD8]

Opens upward for removal of paper jam.

31

Lever[SD9]

Opens rightward for removal of paper jam.

32

Knob[SD10]

Turned clockwise for removal of paper jam.

33

Knob[SD11]

Turn this knob counterclockwise to clear paper jams.

34

Knob[SD13]

Turned to allow removal of paper jam.

35

Lever[SD12]

Opens downward for removal of paper jam.

36

Fold & staple section

Staples in the paper center part.

37

Stapler

Makes two or four staples for Fold & Staple processing.

38

Booklet transfer section

Conveys the folded paper (booklet) to the Clamp section.

39

Knob[SD14]

Turned to allow removal of paper jam.

40

Secondary (sub) tray cover

Open this cover to clear paper jams in the tri-fold conveyance unit.

41

Lever[SD17]

Opens upward for removal of paper jam.

42

Lever[SD18]

Opens downward for removal of paper jam.

43

Folding Unit FD-504 (option)

Carries out spine corner forming for the folded and stapled booklet.

44

Trim scrap box

Contains cut edge trimming scraps.
