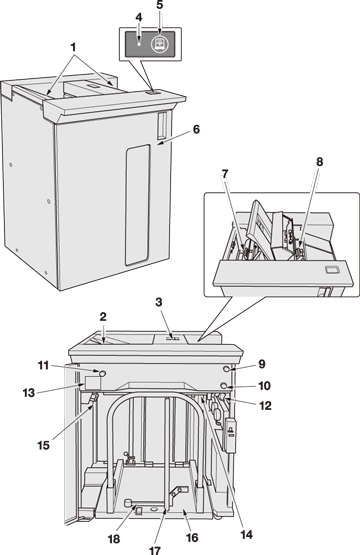

Large Capacity Stacker LS-506
No. | Name | Description |
|---|---|---|
1 | Secondary (sub) tray | Holds sets output in non offset mode. |
2 | Top cover handle (left) | Opens to allow removal of paper jam. |
3 | Top cover handle (right) | Opens to allow removal of paper jam. |
4 | Paper removal indicator | Lights while the Stacker tray goes down when Paper removal button is pressed. |
5 | Paper removal button | Pressed to take out printed sheets from the Stacker tray. |
6 | Large capacity stacker door | Opens to take out printed sheets from the Stacker tray. |
7 | Handle[LS7] | Opens to allow removal of paper jam. |
8 | Handle[LS6] | Opens to allow removal of paper jam. |
9 | Knob[LS3] | Turned counterclockwise to feed paper jam to the Stacker tray. |
10 | Knob[LS2] | Turned counterclockwise to feed paper jam to the Secondary (sub) tray. |
11 | Knob[LS4] | Turned counterclockwise to feed paper jam to the outlet. |
12 | Lever[LS1] | Opens downward for removal of paper jam. |
13 | Jam position display | Indicates the position of paper jam by LED lamps. |
14 | Stacker tray | Holds sets output in both non offset and offset modes. |
15 | Lever[LS5] | Opens downward for removal of paper jam. |
16 | Carriage | Carries output sheets together with the Stacker tray. |
17 | Paper holder | Mounted with Paper stopper for holding output sheets. |
18 | Paper stopper | Holds output sheets to prevent them from collapsing. |
