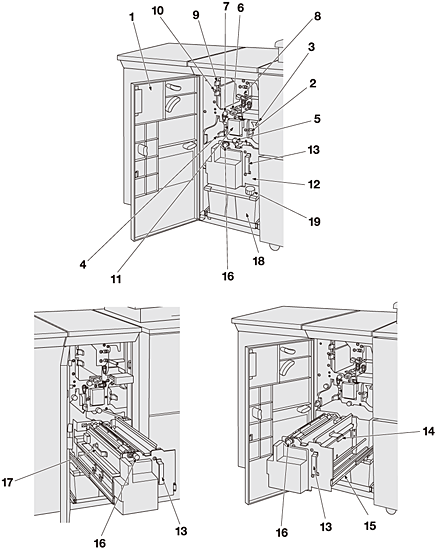

Relay Unit RU-509

No.

Name

Description

1

Relay unit front door

Opens to allow removal of paper jam or supply of water to the Humidifier tank of Humidifier HM-102.

2

Lever[RU1]

Opens rightward for removal of paper jam.

3

Lever[RU2]

Opens downward for removal of paper jam.

4

Lever[RU3]

Opens leftward for removal of paper jam.

5

Knob[RU4]

Turned clockwise for removal of paper jam.

6

Lever[RU5]

Opens upward for removal of paper jam.

7

Knob[RU6]

Turned to allow removal of paper jam.

8

Lever[RU7]

Pressed downward and then opened upper-rightward for removal of paper jam.

9

Lever[RU8]

Opens rightward for removal of paper jam.

10

Lever[RU9]

Opens rightward for removal of paper jam.

11

Jam position display

Indicates the position of paper jam by LED lamps.

12

Humidifier HM-102 (option)

Humidifies both front and back sides of print paper in order to flatten it out.

13

Handle[HM1]

Held to withdraw the unit for removal of paper jam inside the Humidifier HM-102.

14

Lever[HM2]

Opens rightward for removal of paper jam.

15

Lever[HM3]

Opens downward for removal of paper jam.

16

Knob[HM4]

Turned counterclockwise for removal of paper jam.

17

Handle[HM5]

Opens upward for removal of paper jam.

18

Humidifier tank

Supplied with water for humidification.

19

Humidifier tank cap

Opens to allow supply of water to the Humidifier tank.
