Output Tray OT-510

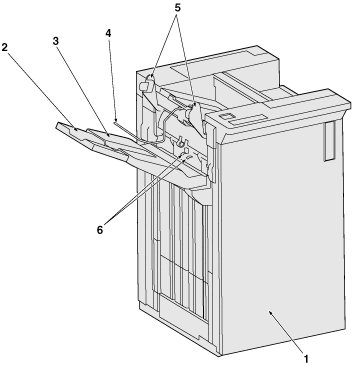

External view of Output Tray OT-510

No.

Name

Description

1

Finisher front door

Open this door to clear paper jams.

2

Primary (main) tray extension

Pulled out to hold large paper sizes delivered to the primary (main) tray.

3

Primary (main) tray

Holds sets output in non-offset or offset mode.

4

Paper holder

Holds thin paper or curled paper delivered to the primary (main) tray.

5

Exit guides

Adjusts the position in crosswise direction of sheets delivered to the primary (main) tray.

6

Gripper

Adjusts the position in feeding direction of sheets delivered to the primary (main) tray.

Internal view of Output Tray OT-510

No.

Name

Description

1

Lever[FS1]

Opens downward for removal of paper jam.

2

Lever[FS2]

Opens upward for removal of paper jam.

3

Knob[FS3]

Turned to allow removal of paper jam.
