Authenticating with IC Card

This section describes the operation to gain authentication with an IC card using the Authentication Unit AU-201S.

  • To use the Authentication Unit AU-201S, contact your service representative.

  • The machine can be set to operate User Authentication by IC cards. In this case, users can gain User Authentication also by entering a [User Name] and User [Password].

  • If you proceed to Utility/Counter - [User Setting] - [System Setting] - [Service Port Device Setting], and then set [OFF] for [Service Port Device], the machine no longer recognizes the Authentication Unit AU-201S, resulting in unavailability of IC card authentication.

  • If you disconnect the USB cable of Authentication Unit AU-201S from the main body while registering the authentication data, the [Auth. Device] button is grayed out on the authentication screen to show its unavailability.

  • One IC card can be registered per user. A user cannot register multiple IC cards. To register a new IC card for a previously registered user, overwrite the existing IC card information.

  • One IC card can be selected from five types: FeliCa, SSFC, FCF, FCF (Campus), and Type A or four combinations: FeliCa+TypeA, SSFC+TypeA, FCF+TypeA, and FCF (Campus)+TypeA.

  • The same IC card cannot be registered for different users.

  • The card information registered with the IC card can be deleted.

  • This function is not available when the Enhanced Security mode is activated.

  1. When the machine is set up to use IC cards for user authentication/account track, it displays one of the following two screens depending on the setting. Please follow the instructions provided for each screen.

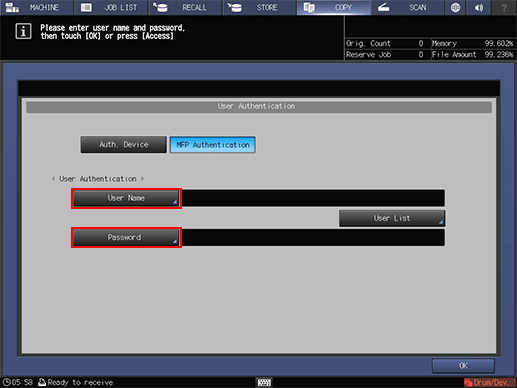

    • The screen shown below is for users who have been assigned a user name and user password. Some users may have a specified account.

    • Press [Auth. Device] and hold the IC card which has been registered in the user registration over the Authentication Unit AU-201S.

    • Even without an IC card, users can also be authenticated by pressing [MFP Authentication] and entering a [User Name] and User [Password]. However, when the administrator selects [Synchronize] for the Synchronize User/Account Track, users are not authenticated even if they enter a [User Name] and User [Password], unless an account is registered in the user registration in advance.

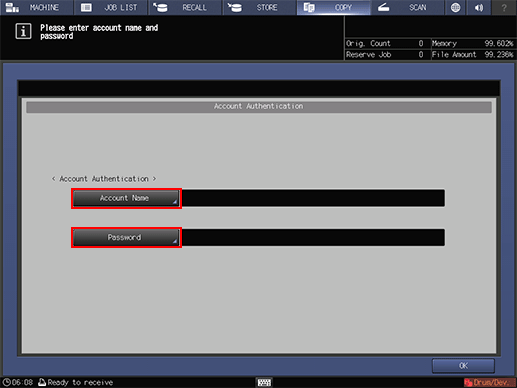

    • The screen shown below is for users who have been assigned an Account [password].

    • The [User Authentication] screen is displayed first. Hold the registered IC card over the Authentication Unit AU-201S and the [Account Authentication] screen is displayed.

    • Enter the Account [Password] and you are authenticated. You are not authenticated if an Account [Password] is not registered at the time of account registration.

  2. Press [OK].

    The screen you attempt to access will be displayed.

    • The message [Reached copy limit] may be displayed and the machine may become unusable. Contact your administrator.

    • Even if authenticated, some of the [Copy], [Scan], [Print], and [User Box] functions may not be allowed by the administrator. Contact your administrator.

  3. Start operation.

    You can use the machine normally.

    • If reset is activated, the screen changes to the [MACHINE] screen. You need to gain authentication again when accessing screens that require authentication.

  4. When complete, press Access on the control panel.

    You need to gain authentication again when accessing screens that require authentication. Otherwise, you cannot access and work on these screens.
