HomeScanSpecifying a Destination

Specifying a Destination

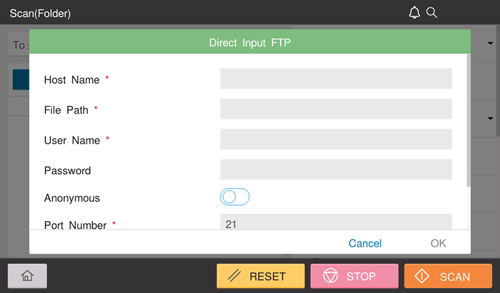

Directly entering the destination

Directly enter destination information.

  1. Tap [+].

  2. Select [FTP].

  3. Enter destination information.

    Setting

    Description

    [Host Name]

    Enter the destination host name or IP address (using up to 253 bytes).

    • Example to enter the host name: "host.example.com"

    • Example to enter the IP address (IPv4): "192.168.1.1"

    • Example to enter the IP address (IPv6): "fe80::220:6bff:fe10:2f16"

    [File Path]

    Enter the folder name of the host specified in [Host Name] (using up to 127 bytes). When not specifying the folder name, enter only "/".

    • Example to enter the folder name: "scan"

    • Example to enter the folder name in the folder: "scan/document"

    [User Name]

    If authentication is required in the FTP server, enter the available user name to log in (using up to 64 characters).

    [Password]

    Enter the password (using up to 64 characters, excluding double quotation marks ").

    [Anonymous]

    When authentication is not required in the FTP server, set this option to ON (default: OFF).

    [Port number]

    If necessary, change the port number (default: [21]).

    [Proxy]

    When a proxy server is used in your environment, set this option to ON (default: OFF).

    [PASV]

    When the PASV mode is used in your environment, set this option to ON (default: OFF).

  4. Tap [OK].

Using Address Book

Selecting the Destination tab () displays a list of destinations registered on this machine. Switch the display using an index, and specify the target destination. For details, refer to Here.

Searching for the registered destination

Tapping the Search tab () displays the destination search screen. If a large number of destinations are registered, the system searches for the registered name of the destination or characters of the address to find the target destination. For details, refer to Here.

Using Job History

Tapping the History tab () displays a list of transmission logs. Specify the target destination from the previous five job histories. For details, refer to Here.
