CMYK TP: Measure a Chart

On the measurement screen, select a colorimeter and then start measurement.

  • To measure a chart, install the driver of your colorimeter.
    For details, refer to its manual.

  • Patterns of charts and available sizes of paper vary among types of colorimeters.

  • According to the colorimeter, operations differ. For details about the operation procedure, refer to its manual.

  • The chart is available on the CD of Color Centro.
    E:\Color Centro\Chart\ForProfile

  • Before you print a chart, perform calibration.
    Calibration

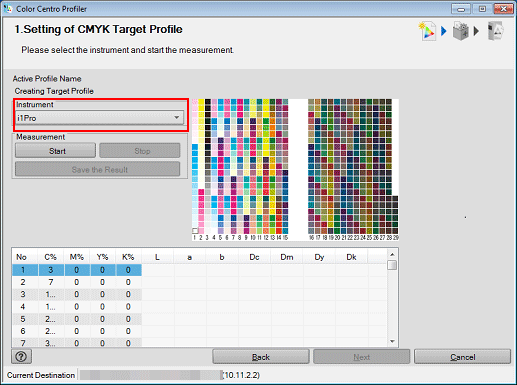

  1. Select a colorimeter from [Instrument] on the chart measurement screen.

    According to the selection, the chart image appears on the upper-right of the screen.

    • [i1iSis (UV Filer)] returns the measurement result with the UV cut filter.

  2. Click [Start] to start the measurement.

    • An operation screen for the colorimeter appears. Follow the instructions on the windows that follow.

    • The current position of measurement appears on the chart image of the upper-right of the screen.

    • If you measure a wrong line, a warning message appears. You can select either to try again with the correct line or to proceed to the next line.

    • To stop the measurement, click [Stop].

    • After the acquirement of measurement data, [Save the Result] becomes available.

    • The value of each patch appears in the measurement result list.

  3. Click [Save the Result] after completing the measurement.

    [Save As] screen appears.

  4. Specify the saving place and file name, and click [Save].

    Returns to the Chart Measurement screen after saving the measurement result file.

  5. Click [Next].

    The UCR/GCR Setting screen appears.
