[Paper Setting]: Setting Paper for Tray

Each paper tray has been preset with paper specifications. If you want to use another paper type than any loaded in the trays, follow the procedure below to change the [Paper Setting].

  1. Load copy paper into the tray with the setting to be changed.

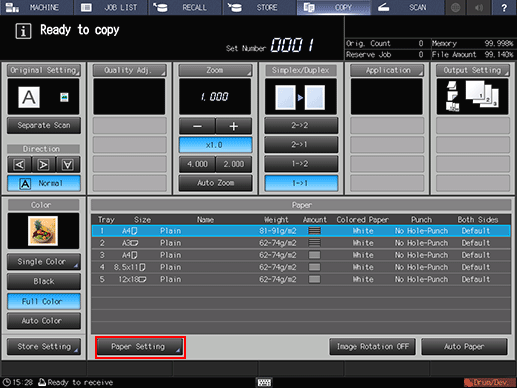

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Check the Paper Setting of each tray displayed under [Paper].

    • The screen provides [Size], [Name], [Weight], [Amount], [Colored Paper], [Punch], and [Both Sides] in a line for each tray. The [Name] normally shows a paper type, or a profile name if registered specifications are recalled.

  4. Press [Paper Setting].

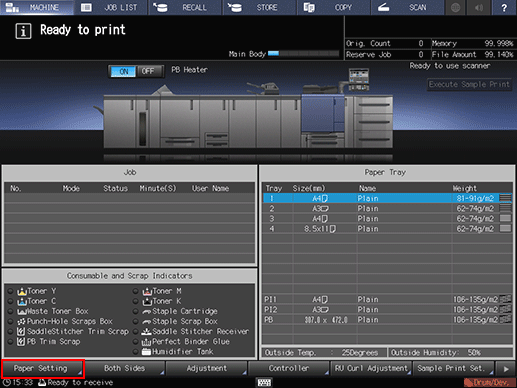

    • You can make the same setting from both [Paper Setting] in the [COPY] screen and [Paper Setting] in the [MACHINE] screen.

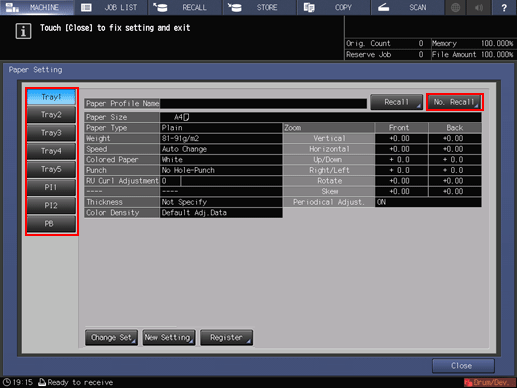

    The [Paper Setting] screen is displayed.

  5. Press the tray key to change the Paper Setting.

    • Tray keys are provided in the left side area of the [Paper Setting] screen. Pressing a tray key shows the conditions specified for that tray in the right side.

    • If you know the profile number of the paper condition to be recalled, press [No. Recall]. You can enter the profile number to easily recall the profile and configure settings.

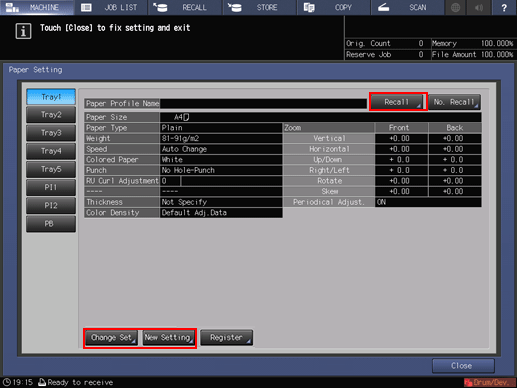

  6. Press [Recall], [Change Set], or [New Setting].

    Pressing [Recall] displays the [Recall] screen, on which registered paper specifications can be selected. Proceed to step 7.

    Pressing [Change Set] or [New Setting] displays the [Change Individual Set] screen to change the specifications individually. Proceed to step 11.

    • Pressing [Change Set] displays the current setting value.

    • Pressing [New Setting] displays the default of this machine.

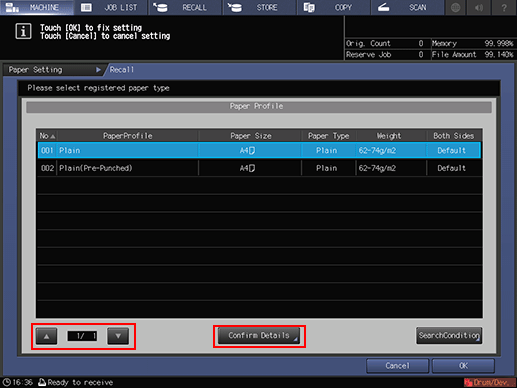

  7. Press [] or [] on the [Recall] screen to scroll to the entry of the desired specifications in the list, then press the entry.

    The selected entry will be highlighted.

    • If registered specifications do not match with those of the selected tray, that entry will be dimmed to show unavailability. In this case, change the tray to be used.

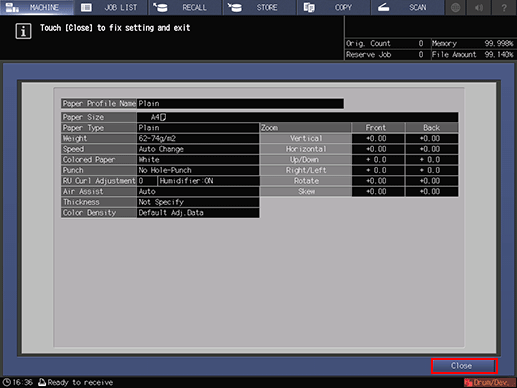

  8. Press [Confirm Details].

    Details of the selected entry is displayed. When finished with checking, press [Close].

  9. Press [OK] on the [Recall] screen.

    The screen returns to the [Paper Setting] screen.

    • The [Paper Profile Name] changes to that of recalled specifications.

    Proceed to step 30, if no setting change is desired for recalled specifications.

  10. Press [Change Set].

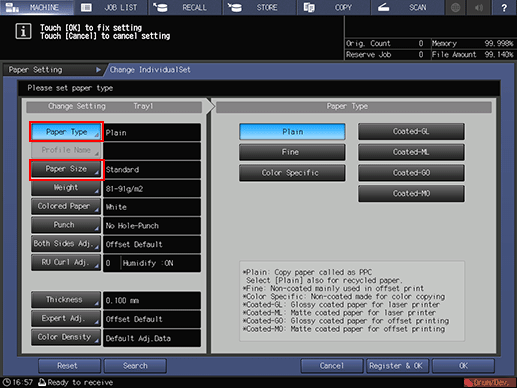

  11. Select the desired one from the keys under [Paper Type].

    • You can select [Coated-GL], [Coated-ML], [Coated-GO], and [Coated-MO] when you set the value of [Weight] to 81 g/m2 / 22 lb Bond or more.

    • Pressing [Search] allows you to search for the registered paper profile in the currently displayed paper setting.

    • Pressing [Reset] allows you to reset the current setting value to the default on the machine.

  12. Press [Paper Size].

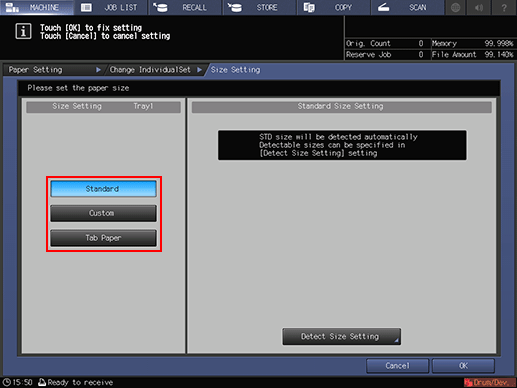

    The [Size Setting] screen is displayed.

  13. Select the desired one from [Standard], [Custom], and [Tab Paper].

    Proceed to step 14 for setting [Standard].

    Proceed to step 15 for setting [Custom].

    Proceed to step 16 for setting [Tab Paper].

    • If you select the upper tray[PI1] or the lower tray[PI2] of Post Inserter PI-502 in step 5, [Tab Paper] will not be displayed.

    • [Standard] and [Tab Paper] will not be displayed with [PB] selected in step 5.

    • If [Tray3] is selected for Large Capacity Unit LU-202m or Large Capacity Unit LU-202XL in step 5, [Postcard] is displayed. To select this option, you need to install the optional Mount Kit MK-746 on the Large Capacity Unit LU-202m or Large Capacity Unit LU-202XL. Contact your service representative.

  14. With [Standard] selected, the machine automatically detects the standard size when loaded with standard size paper in that tray.

    • There is, however, a group of sizes having subtle distinctions, so that the machine cannot distinguish in the operation of size detection. Let the machine detect a specific size by identifying these sizes as any one of them.

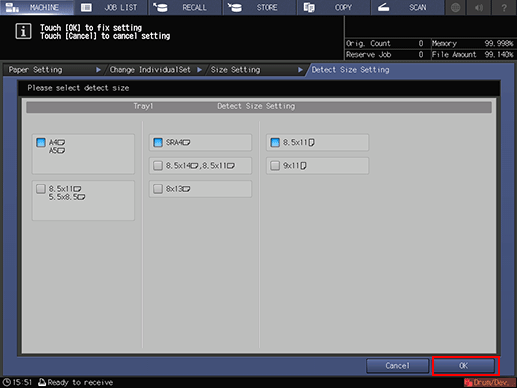

    Press [Detect Size Setting]. The [Detect Size Setting] screen is displayed.

    Groups of indistinguishable sizes are arranged in columns. Press the desired size in each column to select it. Press [OK].

    • Detectable standard sizes vary depending on the paper tray.

    Proceed to step 17.

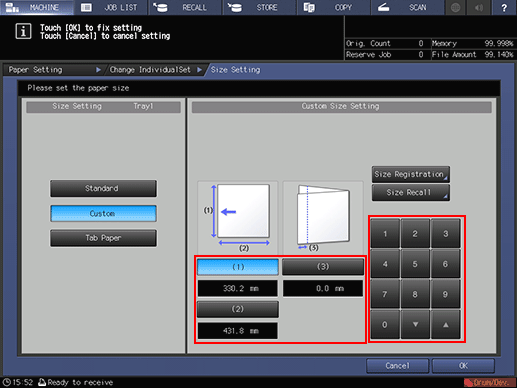

  15. If you select [Custom], the [Custom Size Setting] screen is displayed.

    To specify a custom size:

    • Press [(1)], then use the touch panel keypad, [][], or the keypad on the control panel to enter the desired widthwise dimension.

    • Press [(2)], then use the touch panel keypad, [][], or the keypad on the control panel to enter the desired lengthwise dimension.

    • Press [(3)], then use the touch panel keypad, [][], or the keypad on the control panel to enter the desired trimming amount for covers used in Fold & Staple/Multi Half Fold mode. The button to enter the trimming amount is displayed on the machine with Saddle Stitcher SD-506 or Saddle Stitcher SD-513 mounted.

    To register a specified custom size:

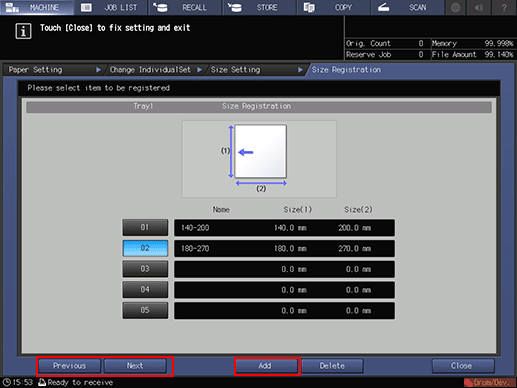

    • After entering the value, press [Size Registration]. The [Size Registration] screen is displayed.

    • Display the desired entry, using [Previous] and [Next] as needed to scroll. Entries from [01] to [20] are provided on the screen.

    • Press the number key on the left side of the desired entry, then press [Add]. The [Custom Size Name Setting] screen is displayed.

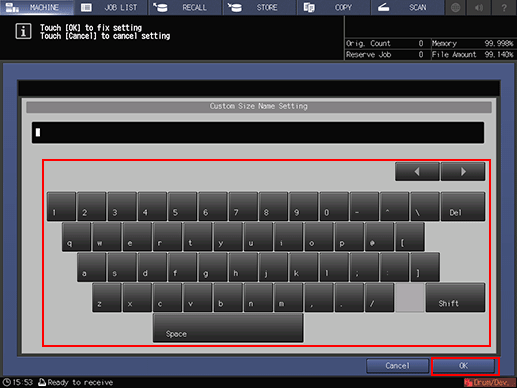

    • Enter the desired name. Up to 20 one-byte characters can be entered.

    • Press [OK].

    To recall a registered custom size:

    • Press [Size Recall]. The [Size Recall] screen is displayed.

    • Display the desired custom size, using [Previous] and [Next] as needed to scroll. Entries from [01] to [20] are provided on the screen.

    • Press the number key of the custom size to be used, then press [OK].

    Proceed to step 17.

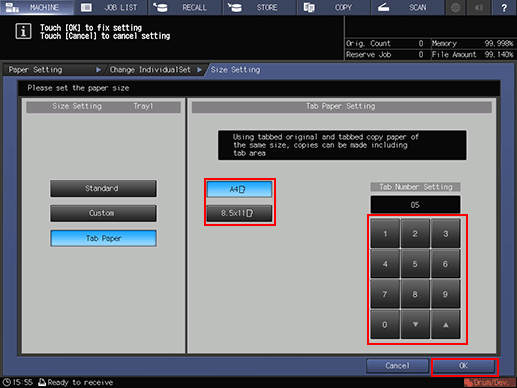

  16. Selecting [Tab Paper] displays the [Tab Paper Setting] screen.

    Select either [A4T] or [8.511T].

    Use the touch panel keypad, [], [], or the keypad on the control panel to enter the number of tabs. Setting range for the number of tabs is from 1 to 15.

    Press [OK].

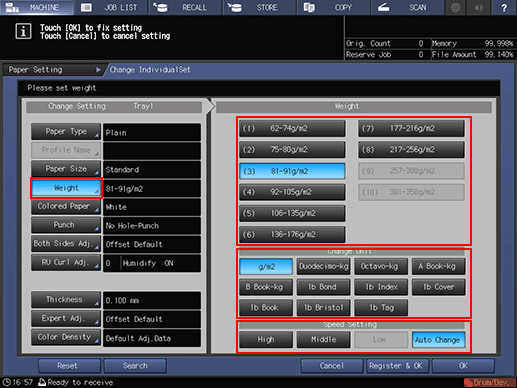

  17. Press [Weight].

    The [Weight] screen is displayed. Select the desired weight key under [Weight].

    • [(9) 257-300 g/m2] / [(9) 69-81 lb Bond] and [(10) 301-350 g/m2] / [(10) 82-93 lb Bond] are unavailable for [Tray 1] and [Tray 2].

    • The keys [(1) 62-74 g/m2] / [(1) 16-19 lb Bond], [(2) 75-80 g/m2] / [(2) 20-21 lb Bond], [(8) 217-256 g/m2] / [(8) 58-68 lb Bond], [(9) 257-300 g/m2] / [(9) 69-81 lb Bond], and [(10) 301-350 g/m2] / [(10) 82-93 lb Bond] are unavailable for the cover tray[PB] of Perfect Binder PB-503.

    • When the upper tray[PI1] and lower tray[PI2] of post inserter of Folding Unit FD-503 are loaded with covers for perfect binding to be made on the machine mounted with Perfect Binder PB-503, Start on the control panel does not function with [(1) 62-74 g/m2] / [(1) 16-19 lb Bond], [(2) 75-80 g/m2] / [(2) 20-21 lb Bond], [(8) 217-256 g/m2] / [(8) 58-68 lb Bond], [(9) 257-300 g/m2] / [(9) 69-81 lb Bond], and [(10) 301-350 g/m2] / [(10) 82-93 lb Bond] selected.

    • Available range of banner paper weight for Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m is 128 g/m2 to 256 g/m2 / 34 lb Bond to 68 lb Bond. Specify the paper weight within the range for [Bypass] tray.

    Select the desired unit key under [Change Unit]. The screen displays the paper weight in the selected unit.

    Process speed can be selected from the keys under [Speed Setting]. Some speed settings cannot be selected depending on the paper weight. Select the desired button.

    • For the upper tray[PI1] or the lower tray[PI2] of Folding Unit FD-503 or Post Inserter PI-502, [Speed Setting] will not be displayed.

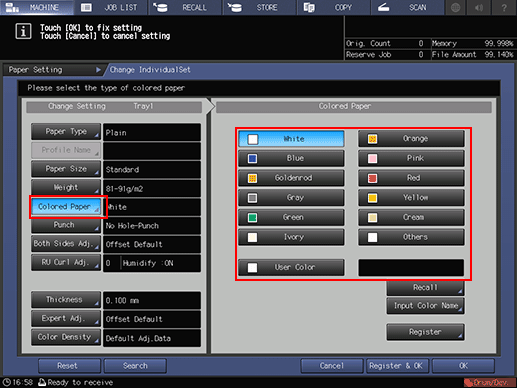

  18. Press [Colored Paper].

    Select a desired Colored Paper key.

    To specify a desired color name:

    Press [User Color]. The [Input Colored Paper Name] screen is displayed.

    Enter the desired color name. Up to 20 one-byte characters can be entered.

    Press [OK].

    • To change the specified color name, press [Input Color Name] to display the [Input Colored Paper Name] screen and rename it.

    To register a desired color name:

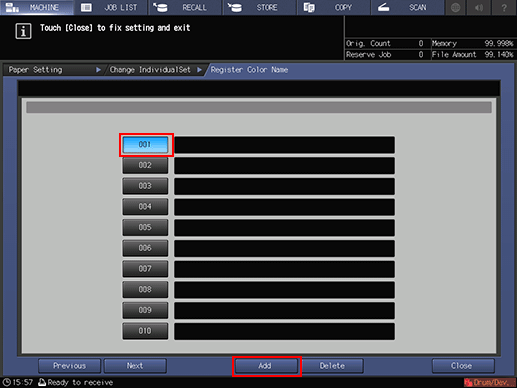

    Press [Store]. The [Register Color Name] screen is displayed.

    Display the number key to be registered, using [Previous] and [Next] as needed to scroll. Entries from [001] to [100] are provided on the screen.

    Press the number key to be registered, then press [Add].

    Enter the color name to be registered, then press [OK].

    • To delete a registered color name, press the number key to be deleted, then press [Delete].

    To recall a registered color name:

    Press [Recall]. The [Recall Color Name] screen is displayed.

    Display the desired number key, using [Previous] and [Next] as needed to scroll. Entries from [001] to [100] are provided on the screen.

    Press the number key on the left side of the color name to be used, then press [OK].

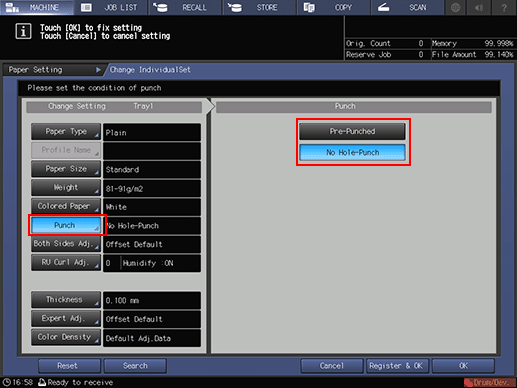

  19. Press [Punch].

    Select [Pre-Punched] when loading sheets with punched holes, and select [No Hole-Punch] when loading sheets without punched holes.

  20. Press [Both Sides Adj.].

    The [Both Sides Adjust] screen is displayed.

    For details about Both Sides Adjust, refer to Both Sides Adj..

    Select [Scan Meas.] to adjust the condition of the back side based on the front side condition by using the scan function. (ineo+ 2060L does not support [Scan Meas.] Adjustment.)

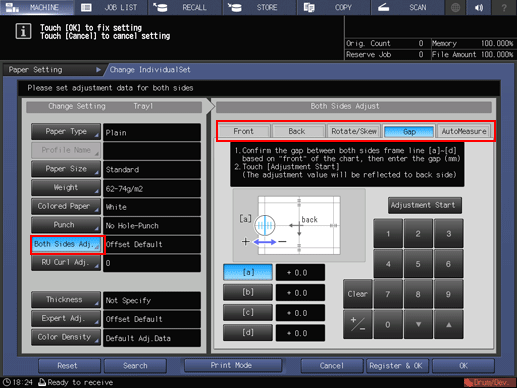

    Select [Gap] to adjust the back side based on the front side.

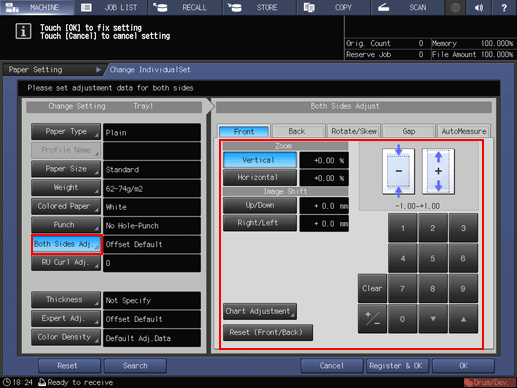

    Select [Front] or [Back] to adjust the front and back sides separately.

    When you select [Gap] for adjustment, enter the amount of the gap (amount of movement on the back side based on the front side) between the front and back side on the chart in each frame, and then press [Adjustment Start].

    If you change settings of [Zoom] of [Front] or [Back], [Image Shift], [Rotate/Skew], and [Chart Adjustment], or perform the [Gap] or [Scan Meas.] adjustment, the indication of [Both Sides Adj.] on the [Change Individual Set] screen is changed to [Offset Changed].

    If you press [Clear], settings with related keys highlighted are restored to default values.

    Take note of that pressing [Reset (Front/Back)] at the lower center of the screen restores default values for settings with related keys not highlighted, in addition to settings with related keys highlighted.

    If Intelligent Quality Optimizer IQ-501 is mounted on this machine, you can select [AutoMeasure] to automatically make the both side adjustment.

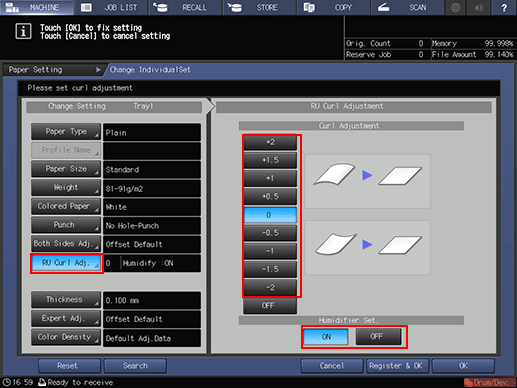

  21. Press [RU Curl Adj.].

    The [RU Curl Adjustment] screen is displayed.

    For details about Curl Adjustment, refer to Curl Adjustment: Reducing Curl (Relay Unit RU-509).

    • If the paper weight of [Color Specific] is set to 62 g/m2 to 135 g/m2 / 16 lb Bond to 36 lb Bond, and the paper weight of [Coated-GL], [Coated-ML], [Coated-GO], and [Coated-MO] is set to 81 g/m2 to 135 g/m2 / 22 lb Bond to 36 lb Bond, the [Humidifier Set.] and [ON]/[OFF] selection become unavailable.

    • [Humidifier Set.] is displayed only when Humidifier HM-102 is mounted.

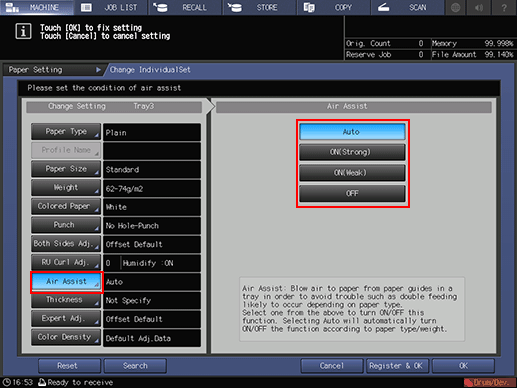

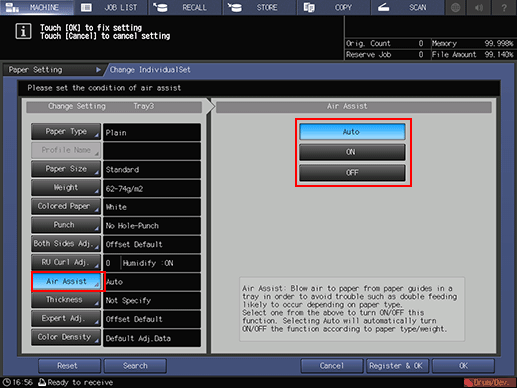

  22. Press [Air Assist].

    The [Air Assist] setting screen is displayed.

    If you select [Tray 3] or [Tray 4] of Paper Feeder Unit PF-602m in step 5, the following [Air Assist] setting screen is displayed.

    Select [Auto], [ON(Strong)], [ON(Weak)], or [OFF], as desired.

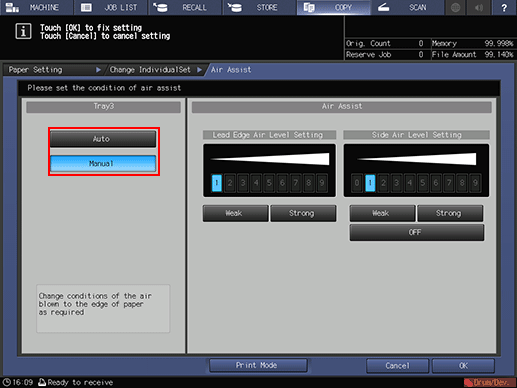

    If you select [Tray3], [Tray4], or [Tray5] of Paper Feeder Unit PF-707 or Paper Feed Unit PF-707m in step 5 and then press [Air Assist], the following [Air Assist] screen is displayed.

    Select [Auto] or [Manual].

    • If you select [Manual], 9 air levels are available by pressing [Weak] / [Strong] in [Lead Edge Air Level Setting] and [Side Air Level Setting].
      [OFF] can also be selected in Side Air Level Setting.

    If you select [Tray 3] of Large Capacity Unit LU-202m or Large Capacity Unit LU-202XL in step 5 and then press [Air Assist], the following [Air Assist] setting screen is displayed.

    Select [Auto], [ON], or [OFF], as desired.

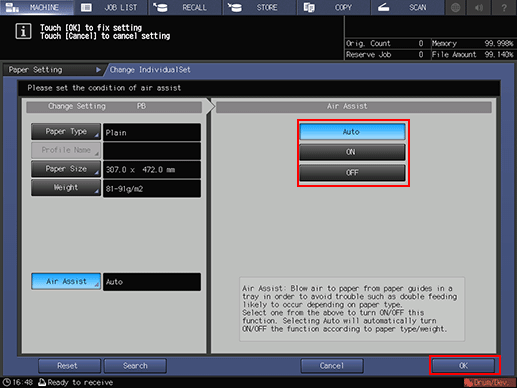

    If you select [PB] of Perfect Binder PB-503 in step 5 and then press [Air Assist], the following [Air Assist] screen is displayed.

    Select [Auto], [ON], or [OFF], as desired.

    Press [OK].

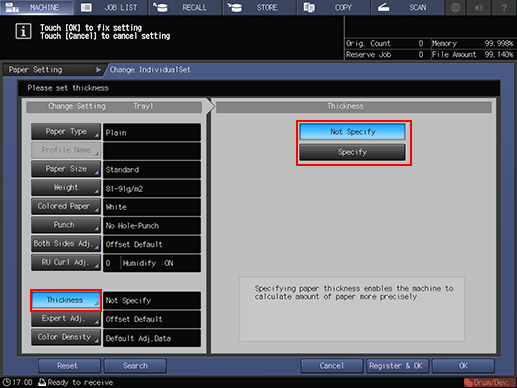

  23. Press [Thickness].

    • [Thickness] is displayed when Image Controller IC-603 is mounted.

    Select the desired button from under [Thickness].

    Selecting [Specify] displays the touch panel keypad. Use the touch panel keypad or [][] to enter the adjustment value. Available range is from 0.050 mm to 0.500 mm.

    • The entered value is displayed on the right side of [Thickness] in the left side area of the screen. Entering a value less than 0.050 mm automatically sets the value to 0.050 mm.

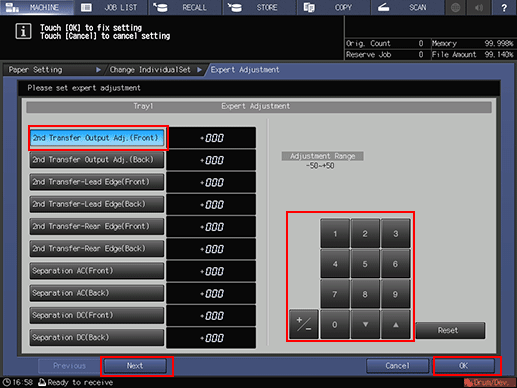

  24. Press [Expert Adj.].

    • In the default setting, [Expert Adj.] is not displayed. To make the expert adjustment from the [Paper Setting] provided on the [MACHINE] screen or [COPY] screen, contact your service representative.

    • For the [Registration Loop (Back)] that is displayed by pressing [Next] twice from [2nd Transfer Output Adj. (Front)], select the button for the item you want to adjust and press the touch panel keypad, [], [], or the keypad on the control panel to enter values.

    • Press [+/-] to specify the value to be positive or negative.

    • Press [Next] to display the setting screen.

    • Make settings for the following items.
      [Up Fusing Initial Temp.], [2nd Trans.Pressure], [CPM Down], [Toner Amount Save], [Dens. Adj. Per Tray(YMC)], [Dens. Adj. Per Tray(K)], [Mis-centering Detect JAM], [Double Feed Detection]*1, [Int. Transfer Separation], [Thick BK Mode], [Feed Correction Level], [Output Curl Adjustment], [Output Curl (Back on Top)], [Centering Adj. (Front)], [Centering Adj. (Back)], [Fusing Air Separation Air Level Setting], [Change Fusing Pressure], [Hard Paper Mode],[PFU Suction Air Level Setting ]*2, [Output Paper Separation Setting], [Output Cooling Air Level Adj.]
      *1: This menu item is to be displayed on the machine mounted with Paper Feeder Unit PF-602m, Paper Feeder Unit PF-707, or Paper Feed Unit PF-707m.
      *2: This menu item is to be displayed on the machine mounted with Paper Feeder Unit PF-707 or Paper Feed Unit PF-707m.

    • Press [OK] to complete the setting. To cancel the change, press [Cancel].

  25. Press [Color Density].

    The [Color Density] screen is displayed.

    • This setting is enabled when [ON] is selected for [Use Color Density Control], accessed from [Color Density Control] - [Basic Setting] on the [Adjustment Menu] screen.

    Select [Default Adj. Data], [Registered Adj. Data], or [OFF], as desired.

    • With [Default Adj. Data] selected, the machine performs Gamma Correction (Color Density Control) with reference to the adjustment data preset on the machine.

    • Selecting [Registered Adj. Data] displays the [Each Paper Type Color Adjustment List] screen.
      Select the desired registration name, then press [OK]. The list displayed on the [Each Paper Type Color Adjustment List] screen indicates color sensor adjustment values per paper type registered in [Color Density Control] of the [Adjustment Menu] screen.

    • Selecting [OFF] deactivates the Color Density Control function.

  26. Paper Setting is then completed.

    • To apply and register paper conditions, press [Register & OK]. Proceed to step 27.

    • To apply paper conditions without registration, press [OK]. Proceed to step 30.

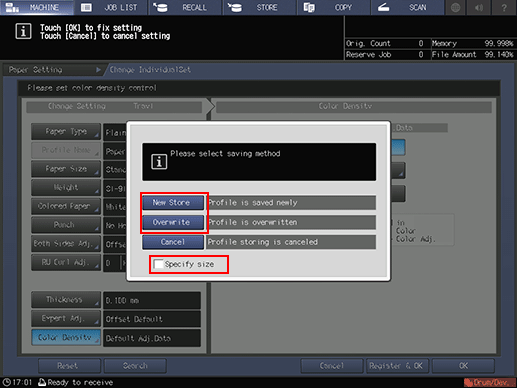

  27. Select a storage method.

    • When pressing [New Store], go to step 28.

    • If [Overwrite] is selected, data is overwritten by the registered paper condition.

    • To also store the paper size, select the [Specify size] check box.

    • If the [Specify size] check box is not selected, the paper size is stored as [Don't Care].

  28. Enter the desired paper profile name.

    • Up to 25 two-byte characters or 50 one-byte characters can be entered for the paper profile name.

  29. Press [OK].

    Paper conditions are registered in the profile of the lowest number.

    The screen returns to the [Paper Setting] screen.

  30. Press [Close].

    The screen returns to the [MACHINE] screen or the [COPY] screen.
