Home Settings and AdjustmentsUnit Setting: Selecting the Unit for Values

Unit Setting: Selecting the Unit for Values

Select the unit of measurement for numeric values to be entered or displayed on the touch panel.

The default setting is [mm].

  1. Follow the procedure on User Setting to display the [User Setting Menu] screen.

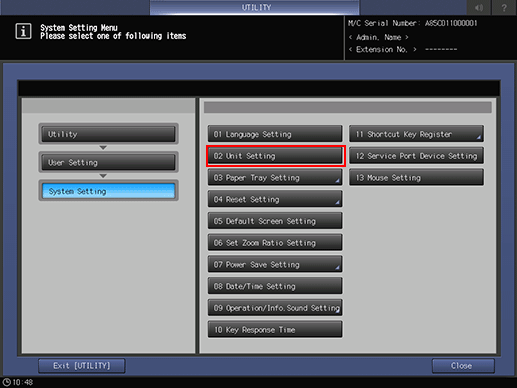

  2. Press [System Setting] on the [User Setting Menu] screen, and then press [Unit Setting].

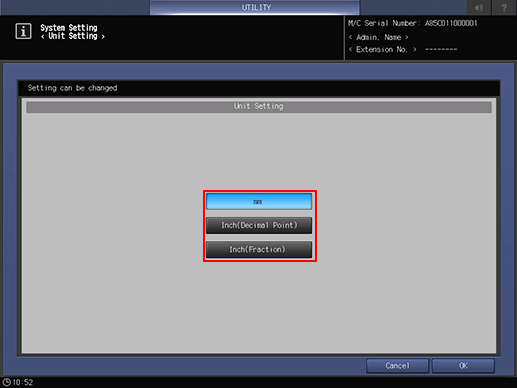

  3. Select the desired unit.

  4. Press [OK] to complete the setting.

    • To cancel the change, press [Cancel]. In either case, the screen returns to the [System Setting Menu] screen.
