CD-Mag. Adjustment: Adjusting the Magnification in Crosswise Direction in the Printer

Adjust the magnification in crosswise direction in the printer engine.

This operation is the same as that in [Adjustment] - [Machine Adjustment] - [Printer Adjustment] - [CD-Mag. Adjustment], accessed from the [MACHINE] screen.

1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

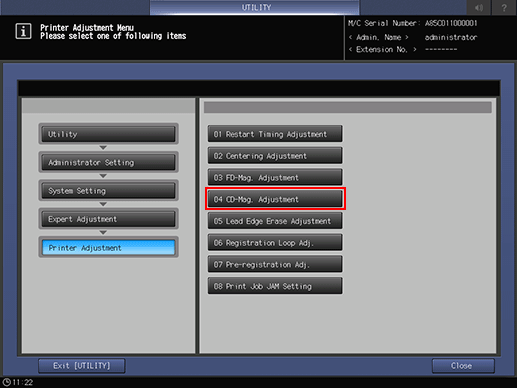

2. Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [Printer Adjustment], and [CD-Mag. Adjustment] in sequence.

   The [CD-Mag. Adjustment] screen is displayed.

   • For details about subsequent operations, refer to CD-Mag. Adjustment: Adjusting the Magnification in Crosswise Direction in the Printer.
