FD-Mag. Auto Adj.(Back): Automatically adjusting the magnification in the paper feed direction on the back side when using the ADF

Automatically adjust the magnification in the paper feed direction on the back side when scanning on the ADF.

  1. Follow the procedure on Administrator Setting to display the [Administrator Setting Menu] screen.

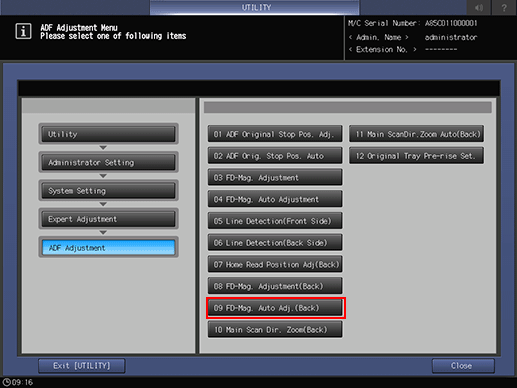

  2. Press [System Setting] on the [Administrator Setting Menu] screen, and then press [Expert Adjustment], [ADF Adjustment], and [FD-Mag. Auto Adj. (Back)] in sequence.

    The [FD-Mag. Auto Adjustment(Back)] screen is displayed.
