Operation from Machine

Edit print settings of a hold job using the Hold Job screen on the touch panel of the main body.

  1. On the touch panel of the main body, press JOB LIST.

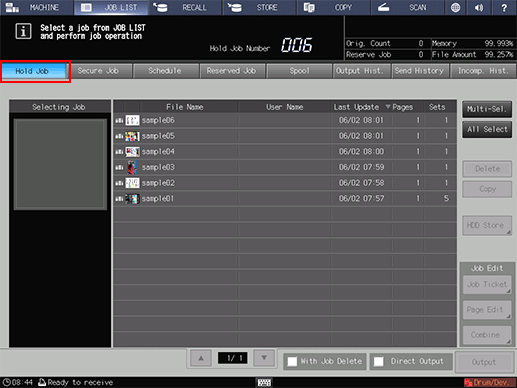

  2. Press Hold Job.

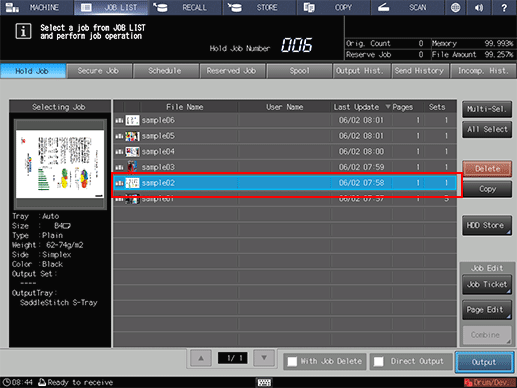

  3. Select a job to be edited on the Hold Job screen.

    Select a job to edit a job ticket from the list.

    • supplementary explanationIf the desired job is not found on the list, press up or down to display that job.

    • supplementary explanationPressing each title in the title row will sort the list in selected order.

    • supplementary explanationMultiple jobs can be selected, but only the last selected job is targeted for editing.

    • supplementary explanationFor details about the icons displayed in the list, refer to [Hold Job] Screen.

  4. Press Job Ticket in the Job Edit field.

    The specified job is called and the Job Ticket Edit screen is displayed.

    • supplementary explanationOn the Job Ticket Edit screen of the Hold Job screen, you can edit any of copy job, scan job, and print job.

  5. Click the button of the item to edit and change the setting.

    • supplementary explanationYou can check the status of imposition with the preview image in the middle of the screen.

    The following settings are available on the Job Ticket Edit screen.

    Item

    Setting

    1. Left pane of the screen

    Basic Setting

    Set File NameSet Number.

    Output Setting

    Set Bind DirectionSort/GroupFaceOrderFold Print SideNeedless Tab Exit, etc.

    Application Setting

    Set BookletAdhesive BindingCombineImage RepeatPage MarginRegister Crop Mark180 Deg. RotationImage CenteringStamp, etc.

    Other Setting

    Check other application settings (Book Copy, NoImage Area Erase, Frame Erase, Annotation, Full Image Area), Copy Density, Background Removal, Sharpness, Contrast, and Distinction(Text).

    2. Center pane of the screen

    Preview image display

    Displays the preview image of the selected file. You can preview the front and back side image of a 2-sided original, and check the rotate view image or the output direction of the image. On the enlarged preview screen, you can set the crop mark, image position, or image shift function.

    Paper Setting

    Set Profile No.Paper SizePaper TrayAuto Tray TargetPaper TypeWeightColored PaperPunch.

    3. Right pane of the screen

    Print Side

    Set Simplex and Duplex.

    Output Setting

    Set Output TrayStapleMulti Half FoldMulti Tri-FoldFold & StapleFoldPunch, etc.

    Quality Adjustment

    Set Image ShiftImage PositionOutlineImage ScreenTextGraphicsScreenTone Curve Adj., etc.

    Other Setting

    Check Original Size, Original Type, Original Side, Zoom , and Resolution, etc.

    Color Sheets in One Set

    You can check the number of pages for Full Color, Single Color, or Black included in the job.

    • supplementary explanationPressing Error Check in the upper right of the screen starts checking for inconsistency of the settings. If any of the settings obstructs output, the cause is displayed.

    • supplementary explanationIf images with different type of job (copy (copy or scan job held from the main body) or print (print job held from the printer driver) or the controller image compression setting (priority on gradation/priority on resolution) are attached on the image data in the Image Page Edit screen, you cannot select Booklet, Adhesive Binding or Combine of Application Setting in the Job Ticket Edit screen.

    • supplementary explanationTo check the output image with the current settings, press Sample Output. Only one set, the sheet being previewed, or the specified sheet is output so that you can check the actual result.

    • supplementary explanationTo display the Image Page Edit screen, press the Image Page Edit tab. To return to the Job Ticket Edit screen, press the Job Ticket Edit tab. For details, refer to Hold Job: Overview of Page Editing.

  6. After editing, press New Store or Overwrite.

    • supplementary explanationNew Store: The data is saved as new data keeping the original data as is.

    • supplementary explanationOverwrite: The original data is overwritten by the edited data.
