Dragging and Dropping to the Desktop Icon for Printing

Examples Introduced in This Section

If you create a Hot Folder desktop icon (shortcut), you can drag and drop a file to it to start printing.

  • If you create a job setting desktop icon (shortcut) in Hot Folder, you can start printing just by dragging and dropping a PDF/TIFF/PS file to the icon.

  • You do not need to start an application or operate the printer driver.

  • You can create a desktop icon for each job setting (print setting of the job).

Tips
  • However, using the desktop icon does not allow you to ensure the shared setting or printed file.

Intended Environment

Operating system

Windows 7

Application

Hot Folder

Image Controller

Image Controller IC-605

* The sample screen may be different from the actual display depending on your system environment and application version/revision.

Workflow

Creating a Job Setting Desktop Icon

Dragging and Dropping for Printing

Reference
  • For details about the operating systems compatible with Hot Folder, refer to Specifications.

Creating a Job Setting Desktop Icon

  1. Start Hot Folder, then add this machine.

    Refer to STEP 1 (Copying a File to the Hot Folder for Printing) in (Adding a Printer (this Machine) to Hot Folder).

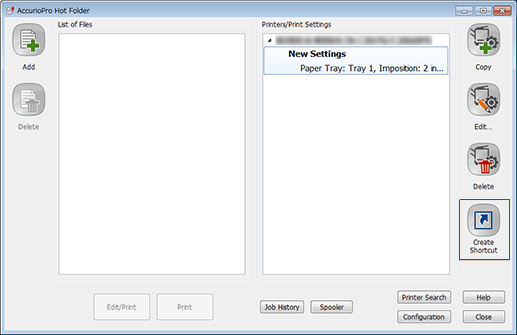

  2. Add a job setting in Hot Folder. In the main screen, select the desired print setting, then click Create Shortcut.

    For details about how to add a job setting, refer to STEP 2 (Copying a File to the Hot Folder for Printing) in (Adding a Job Setting).

  3. Enter the shortcut name, then click Save. Check that the shortcut icon has been created on the desktop.

    In this example, specify Job Settings as the shortcut name.

    You will find a shortcut icon as below.

Dragging and Dropping for Printing

  1. Drag and drop the file to print to the job setting shortcut icon.

    The print job is sent to this machine, and printed.
