Tri-Fold Print

If Saddle Stitcher SD-513 is mounted, paper can be folded inside in three when printed. Then, you can select either inside or outside to have the printed image. The paper folded in three is output to the Multi tri-fold mode tray.

Output mode

Description

Illustration

[Multi Tri-Fold] + [Outside Print]

Folds paper in three with the print side facing outward.

[Multi Tri-Fold] + [Inside Print]

Folds paper in three with the print side facing inward.

  1. Position the original.

    • The number of original sheets to be loaded is set to that for Multi Tri-Fold. For information on the number of sheets folded in Multi-Fold, refer to Saddle Stitcher SD-513.

  2. Press the [COPY] tab to display the [COPY] screen.

  3. Press [Output Setting].

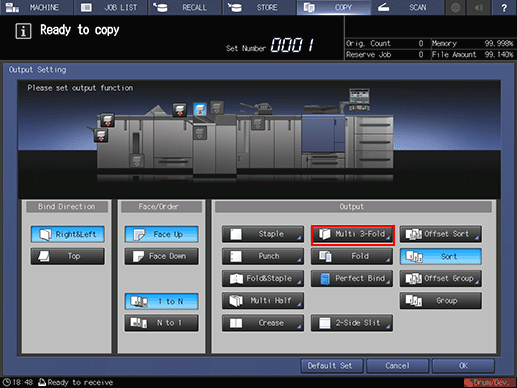

    The [Output Setting] screen is displayed.

  4. Press [Multi 3-Fold].

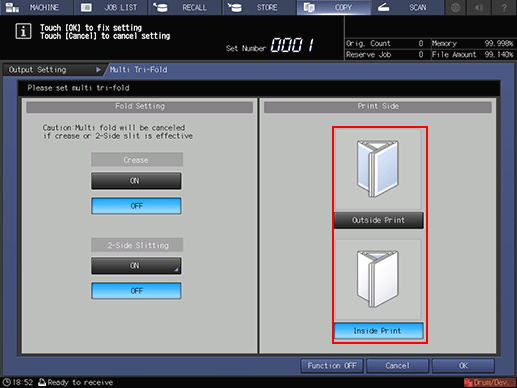

    The [Multi Tri-Fold] setting screen is displayed.

  5. Press either [Outside Print] or [Inside Print].

  6. Press [OK].

    • To undo the setting, press [Cancel].

    • To disable the function while keeping the current setting, press [Function OFF].
      This returns to the [Output Setting] screen.

  7. Press [OK] on the [Output Setting] screen to return to the [COPY] screen.

    An icon representing specified function is displayed under [Output Setting] on the [COPY] screen.

  8. Select additional copy conditions, as desired.

  9. Enter the desired print quantity using the keypad.

  10. Press Start on the control panel.
