Registering an SMB Server as a Destination

Register an SMB server. Sending scan data to an SMB server is made easy by registering the SMB server as a destination.

  • You can register up to 150 SMB servers.

  1. Follow the procedure on Scan Address Register to display the [Scan Address Register Menu] screen.

  2. Press [Address Edit].

    The [Scan Address Register] screen is displayed.

  3. Press [SMB].

  4. Press [Add].

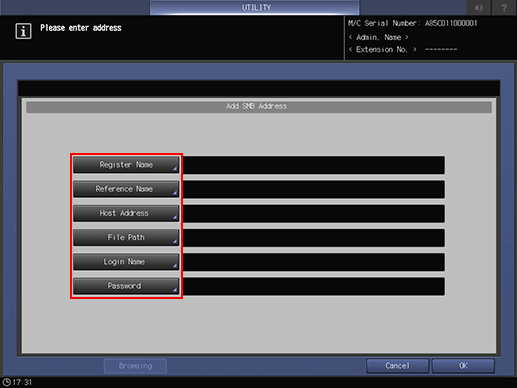

  5. Enter information of a destination on the [Add SMB Address] screen. Pressing each item displays each screen to enter characters.

    [Register Name]

    Enter a name of a destination.
    If you register the name, it is displayed on the destination list.
    You can enter up to 24 one-byte characters (12 two-byte characters).

    [Reference Name]

    Enter text to search for a destination.
    You can enter up to 24 one-byte characters (12 two-byte characters).

    [Host Address]

    Enter the address of an SMB server.
    You can enter up to 253 one-byte characters.

    [File Path]

    Enter the file path of an SMB server.
    You can enter up to 255 one-byte characters.

    • Enter "a shared folder name" or "a shared folder name \a sub folder name" (use "\" as a separator).

    [Login Name]

    (Image Controller IC-603)

    Enter the login name for an SMB server.
    You can enter up to 32 one-byte characters (16 two-byte characters).

    [Login Name]

    (Image Controller IC-313 / Image Controller IC-417)

    Enter the login name for an SMB server.
    You can enter up to 32 one-byte characters (16 two-byte characters).

    • Enter "a domain" or "a workgroup\a user name". A user name alone does not enable.

    [Password]

    Enter the password for an SMB server.
    You can enter up to 32 one-byte characters.

    • The entered password is shown by "*".

    [Browsing]

    (Image Controller IC-603)

    Search a destination from the browse list on the network.

  6. Press [OK].

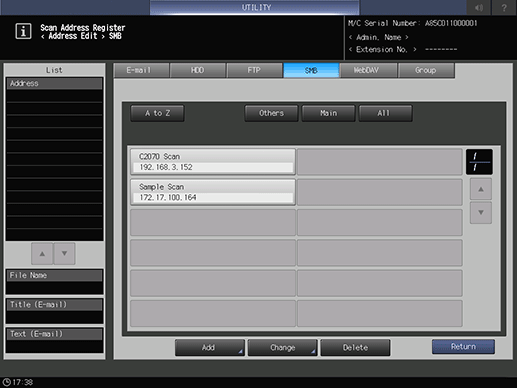

  7. Check that the registration is completed.

    • If destinations cannot be displayed on one page, press [] or [] to switch between pages.
