Overview of Banner Printing
If Banner Tray Unit MK-740 (feeding extension tray or output extension tray), Output tray reinforcing unit for banner MK-740m (feeding extension tray or output extension tray), Large Capacity Unit LU-202XL, or Large Capacity Unit LU-202XLm is mounted on this machine, you can print on banner paper.
Example Introduced in This Section

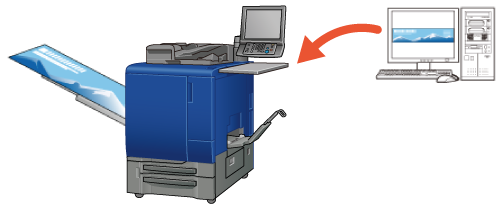

This example shows a case in which Banner Tray Unit MK-740 is used (paper size for Width (Widthwise) 330.2 mm , Height (Lengthwise) 1200.0 mm) in the following environment.
Available banner paper
When using Banner Tray Unit MK-740 (feeding extension tray) or Output tray reinforcing unit for banner MK-740m (feeding extension tray):
Banner paper size: Widthwise 100 mm to 330.2 mm*, Lengthwise 487.8 mm to 1300 mm**
Banner paper weight: 128 g/m2 to 256 g/m2 / 34 lb Bond to 68 lb Bond
Tray capacity: 1 sheet for coated paper, 10 sheets for others (However, 1 sheet when the paper height (lengthwise) is 1,201 mm or more).
* Banner paper of 279 mm or narrower in width may not be correctly printed depending on the paper type or environment.
** When the paper height (lengthwise) exceeds 1,201 mm, put the same size of paper into the output tray before printing.
With Large Capacity Unit LU-202XL or Large Capacity Unit LU-202XLm used:
Banner paper ***: Widthwise 250 mm to 330.2 mm, Lengthwise 487.8mm to 762mm
Banner paper weight***: 128 g/m2 to 256 g/m2 / 34 lb Bond to 68 lb Bond
Tray capacity***: 500 sheets (128 g/m2) for coated paper, 1,000 sheets (128 g/m2) for plain paper
*** For details about the non-banner paper size, weight, and tray capacity, refer to Paper Weight Available for Use, Paper Capacity Available for Use, or Paper Size Available for Use.
Precautions
When this machine is equipped with Large Capacity Unit LU-202XL or Large Capacity Unit LU-202XLm without Multi Bypass Tray MB-506 or Multi Bypass Tray MB-508, the feeding extension tray of Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m is not used. Store the tray in the appropriate location.
Output tray reinforcing unit for banner MK-740m can be connected only when Output Tray OT-510 or Finisher FS-532 is used.
To use paper of loading length 487.8 mm or longer in Banner Tray Unit MK-740 or Output tray reinforcing unit for banner MK-740m, a service setting is required. Contact your service representative.
Intended Environment
Operating system | Windows 7 |
Application | Adobe Acrobat Reader DC |
Printer driver | PS Plug-in Driver |
Image Controller | Image Controller IC-605 |
Feeding option | Multi Bypass Tray MB-506 or Multi Bypass Tray MB-508 |
Output Option | Output Tray OT-510, Output Tray OT-511, Finisher FS-531, Finisher FS-532, Finisher FS-612, or Relay Unit RU-518 |
Feeding/Output option | Banner Tray Unit MK-740 |
* The sample screen may be different from the actual display depending on your system environment and application version/revision.
Workflow
