Administrator Mode Screen
The Administrator Mode Screen can only be accessed by entering a specific administrator password.

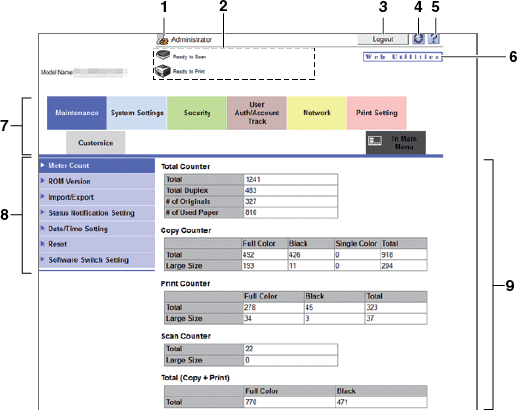

The following describes the configuration of the Administrator Mode screen.
|
No. |
Name |
Description |
|---|---|---|
|
1 |
Administrator setting mode |
Indicates that the current screen is exclusive and accessed by an administrator. |
|
2 |
Status display |
Displays icons and texts that indicate the current status of the main body's printer and scanner sections. |
|
3 |
Logout |
Clicked to log out the administrator mode. |
|
4 |
Refresh |
Clicked to reload the current screen. |
|
5 |
Manual |
Displays the online documentation of Web Connection. The documentation concisely describes supported operating systems. and the browser settings and their contents. To view the online documentation, specify it in Register Support Information. For details, refer to [Register Support Information]. |
|
6 |
Web Utilities |
Accesses Web Utilities. For details, refer to Web Utilities Screen. |
|
7 |
Tabs |
Indicate the category of items to be displayed. - Maintenance - System Settings - Security - User Auth./Account Track - Network - Print Setting - Customize - To Main Menu |
|
8 |
Menu |
Provides the information or setup items to be displayed. The menu items vary depending on the tab selection. |
|
9 |
Information and setting details |
Displays the contents of selected tab or menu item. |
For details about each tab, refer to each of the following pages.
