Settings of this machine

Before installation

Before you can use this machine through the network connection, you must configure the network settings for this machine.

Reference

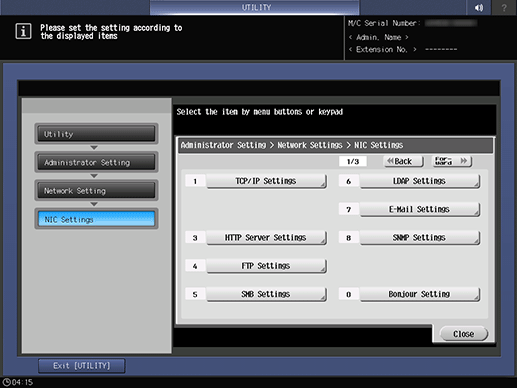

  • For details about the network settings of this machine, refer to [NIC Settings].

IP address setting

In TCP/IP Settings of this machine, specify the IP address.

Reference
  • When this machine is connected through the network, you must previously set the IP address on this machine so that it can be detected automatically. For details, refer to [TCP/IP Settings].

RAW port number/IPP setting for this machine

Change the network settings for this machine according to the connection method or protocol.

  • Port 9100: In TCP/IP Settings, enable the RAW port number (default setting: 9100).

  • IPP/IPPS: In HTTP Server Settings, enable IPP printing.

Reference
