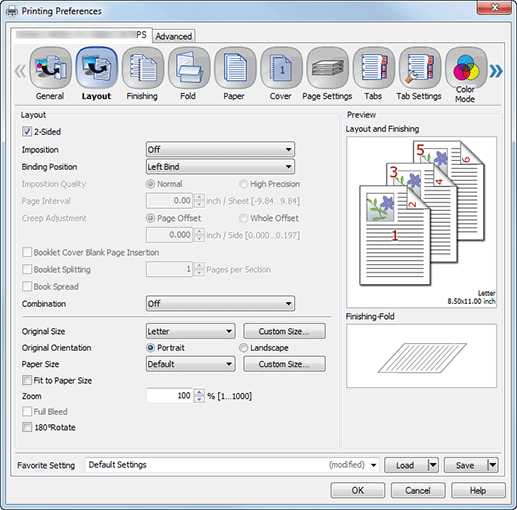

Layout Screen

Function

Option

Description

2-Sided

Off, On

Set this to perform 2-sided printing.

On: Enables 2-sided printing (default).

Off: Enables 1-sided printing.

Imposition

Off, Adhesive Binding, Booklet, 2 in1 (Full Size), 4 in 1 (Full Size / Horizontal), 4 in 1 (Full Size / Vertical), 2 Repeat, 2 Repeat Reversal (Left), 2 Repeat Reversal (Right), 4 Repeat, 8 Repeat

Set this to perform an imposition printing.

Binding Position

Left Bind, Right Bind, Top Bind

Set this to specify the binding position.

Imposition Quality

Normal, High Precision

Set the imposition quality.

Page Interval

-250 mm to +250 mm

Set the interval between book spread pages when setting the imposition function.

When selecting High Precision on the Imposition Quality, you can enter the value of page interval by 0.01 mm.

Creep Adjustment

Page Offset: 0 mm to +5.00 mm / 0" to 0.2"

Whole Offset: 0 mm to +5.00 mm / 0" to 0.2"

Adjust the width of page intervals by considering the thickness of the folded Booklet so that the page interval becomes narrower the further the pages are to the center pages of the booklet.

In Page Offset, specify the offset amount for each page.

In Whole Offset, specify the offset amount based on the total number of pages.

Booklet Cover Blank Page Insertion

Off, On

Inserts a blank page in order to print the last page on the back cover of a booklet when the total number of pages is not a multiple of 4 in booklet printing.

Booklet Splitting

-

Input a number of pages to split a booklet.

It inserts a blank page automatically if the value for Pages per Section is not a multiple of 4.

Book Spread

Off, On

Set this to perform book spread printing from mixed sized originals in the case of Booklet or Adhesive Binding.

Combination

Off, 2 in 1, 2 in 1 (Reverse), 4 in 1, 4 in 1 (Reverse), 6 in 1, 6 in 1 (Reverse), 8 in 1, 8 in 1 (Reverse), 9 in 1, 9 in 1 (Reverse), 16 in 1, 16 in 1 (Reverse)

Combine more than one page onto one sheet of paper for printing.

Original Size

The paper sizes registered as the standard paper sizes and custom sizes

Set a paper size of the original.

When you select the PostScript Custom Page Size, the size specified by Custom Size is used.

In addition, when you register the Custom Paper Size Name using the Custom Size - Add Custom Size, you can also select the name of the size.

Custom Size

Enter or register the size.

You can specify the size as a PostScript Custom Page Size. As for the setting value to the PostScript Custom Page Size, the entered value is also applied to the PostScript Custom Page Size in the Paper Size. The same value is applied to the PostScript Custom Page Size in the Original Size and Paper Size. Whichever value you enter later is applied to both of the settings.

In addition, when you want to register the name for the original size, you can register the name and the size in the Add Custom Size.

Original Orientation

Portrait, Landscape

Set the orientation for the original.

Paper Size



The paper sizes registered as the standard paper sizes and custom sizes

Set a paper size.

When you select the PostScript Custom Page Size, the paper size registered as Custom Size is used. In addition, when you register the Custom Paper Size Name using the Custom Size - Add Custom Size, you can also select the name of the size.

Custom Size

Specify or register the size.

You can register the size as a PostScript Custom Page Size. As for the setting value to the PostScript Custom Page Size, the entered value is also applied to the PostScript Custom Page Size in the Original Size. The same value is applied to the PostScript Custom Page Size in the Original Size and Paper Size. Whichever value you enter later is applied to both of the settings.

In addition, when you want to register the name for the paper size, you can register the name and the size in the Add Custom Size.

Fit to Paper Size

Off, On

Use this setting to fit the printed document on the page when the original size is different from the paper size.

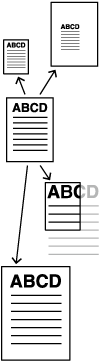

Zoom

1% to 1000%

Set an enlarge or reduce ratio.

Full Bleed

Off, On

Print in the original image without blank borders.

This function is available when High Precision on the Imposition Quality is selected.

This function is available when Paper Size is larger than Original Size.

Postcard Full Bleed

Off, On

Use this setting to make prints without placing blank borders in the original image when paper with a narrow width such as A6-size paper is selected.

For details, contact your service representative.

180° Rotate

Off, On

Rotate the image 180 degrees to make prints.

Tips
  • In Custom Size,
    Width 90.0 mm to 330.2 mm
    Height: 148.0 mm to 1300.0 mm is available.
    You cannot specify the paper size as a Custom Size depending on the mounted Feeding option.
    For details about available sizes, refer to Feeding option or contact your service representative.

  • Available range of banner paper size is as follows.
    Width (widthwise): 100 mm to 330.2 mm
    Height (lengthwise): 487.8 mm to 1300.0 mm.
    Banner paper of 279 mm or narrower in width may not be correctly printed depending on the paper type or environment.

  • For details about Banner print, refer to Printing on Banner Paper.
