Default Settings of Printer Driver

Settings for the mounted optional devices

After installing the printer driver, you have to set an optional device in the Option screen before printing.

Tips
  • You cannot use functions of the optional device until setting it in the Option screen. Be sure to set the optional device if there is any.

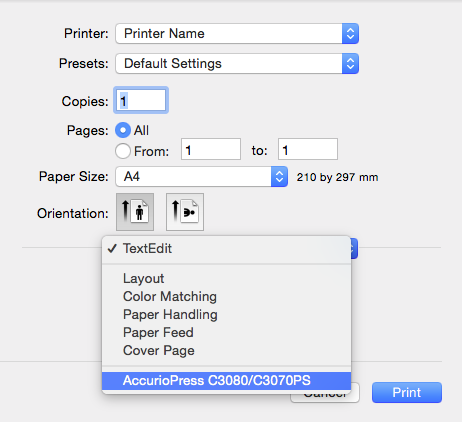

  1. Specify the print command of the application, and select the target printer name from Printer.

  2. Select 81C-1/73C-1PS from the pull-down list of the dialog box, and click Set.

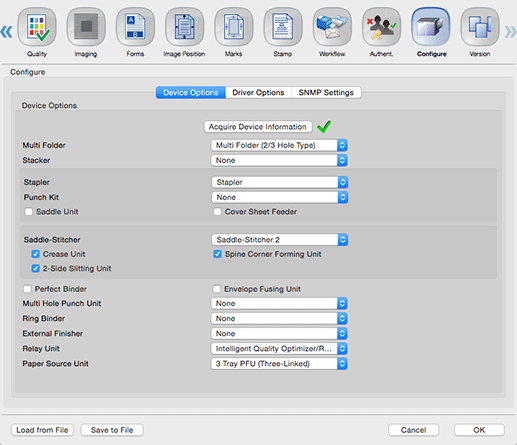

  3. Click on the top right of the screen, and click Configure that is displayed.

  4. Set the options and click OK.

    • supplementary explanationCheck that is displayed at the right of [Acquire Device Information]. If it is not displayed, click [Acquire Device Information] to acquire device option information.

    • supplementary explanationIf you failed to acquire device option information, check the network setting.

Reference
