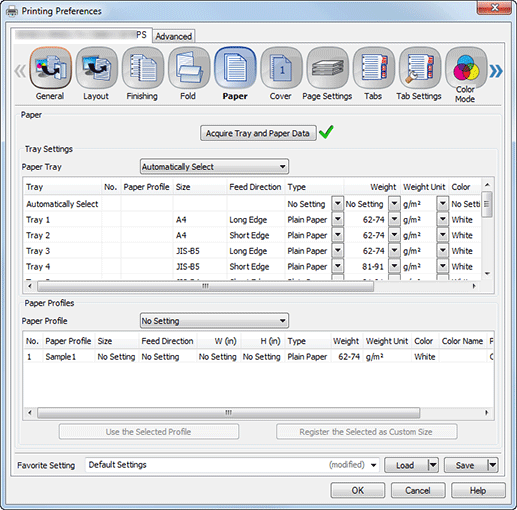

Paper Screen

Tray Settings

Function

Option

Description

Acquire Tray and Paper Data

-

Acquire the paper tray information set and the paper profile information defined in this machine.

  • When is displayed at the right of Acquire Tray and Paper Data, the tray and paper information has been acquired.

Paper Tray

Automatically Select, Tray 1, Tray 2, Tray 3, Tray 4, Tray 5, Tray 6, Tray 7, Tray 8, Tray 9, Tray 10, Tray 11, Bypass Tray

Select a paper tray to be used.

Selectable items vary depending on the mounted optional device.

Type

No Setting, Plain Paper, Color Specific, Fine, Coated GL, Coated ML, Coated GO, Coated MO , Envelope, Textured

Specify a type of paper.

Weight

No Setting,

62-74 g/m2,

75-80 g/m2,

81-91 g/m2,

92-105 g/m2,

106-135 g/m2,

136-176 g/m2,

177-216 g/m2,

217-256 g/m2,

257-300 g/m2,

301-350 g/m2

(When the Weight Unit is g/m2)

Set paper weight of print paper.

Weight Unit

g/m2, Duodecimo, A-Book, B-Book, Octavo, Bond, Book, Bristol, Cover, Index, Tag

Set a unit of weight.

Color

No Setting, White, Blue, Goldenrod, Gray, Green, Ivory, Orange, Pink, Red, Yellow, Cream, Others, User Color

Specify color of print paper.

Pre-Punched

Off, On

Set this to print on pre-punched paper.

Paper Profiles

Function

Option

Description

Paper Profile

No Setting, Registered paper profile

Select predefined paper profile.

You can add a new paper profile to the list from the control panel on the machine.

Use the Selected Profile

-

Use a selected paper profile.

Register the Selected as Custom Size

-

Register a custom paper size.
