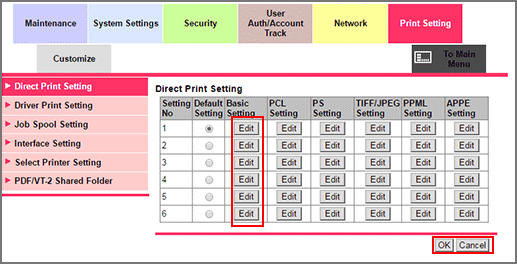

[Print Setting] Tab
The [Print Setting] tab provides settings concerning the printer of the image controller. Settings provided here can be made also from [Controller] on the [MACHINE] screen. For details about the setting values, refer to CONTROLLER: Setting the Controller.
Item | Description |
|---|---|
[Direct Print Setting] | 6 patterns of printer default settings for direct print can be registered. Settings selected by the [Default Setting] radio button can be displayed at [Information] - [Print Setting Information]. For details, refer to Direct Print Setting. |
[Driver Print Setting] | Set the default value of the printer driver. For details, refer to Driver Print Setting. |
[Job Spool Setting] | Set the spool function for print jobs. For details, refer to Job Spool Setting. |
[Interface Setting] | Specify the timeout period of the interface. For details, refer to Interface Setting. |
[Select Printer Setting] | Specify the output setting for each port. For details, refer to Select Printer Setting. |
[PDF/VT-2 Shared Folder] | Configure the setting for PDF/VT-2 Shared Folder. For details, refer to PDF/VT-2 Shared Folder. |
