PDF/VT-2 Shared Folder

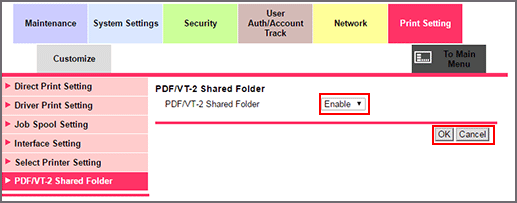

Click [PDF/VT-2 Shared Folder] on the menu of [Print Setting] tab to display this screen.

This setting can be made also from [Controller] on the [MACHINE] screen. For details about the setting, refer to PDF/VT-2 Shared Folder: Configuring PDF Variable Printing.

Configure the setting for [PDF/VT-2 Shared Folder].

  1. Select either [Enable] or [Disable] from the [PDF/VT-2 Shared Folder] drop-down list.

  2. Click [OK]. Clicking [Cancel] cancels the setting.

  3. Click [OK] on the setting complete screen.

  • When the Upgrade Kit UK-104 and Upgrade Kit UK-214 is not installed on this machine, only [Disable] is selectable. To select [Enable], install the Upgrade Kit.

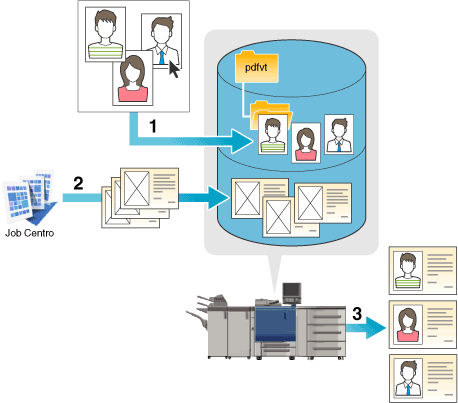

PDF/VT-2 Procedure (Job Centro)

1

Store VDP resource data (variable data) in the SMB shared folder, "pdfvt", on the machine.

  • To access the PDF/VT-2 shared folder, specify "\\IP address of this machine\pdfvt".

  • If necessary, you can create any sub folder just under the "pdfvt" shared folder to save VDP resource data in the sub folder.

2

Use Job Centro to import PDF/VT-2 document data, then associate it with the storage path of VDP source data to send the job.

  • You can also use Hot Folder to import PDF/VT-2 document data.

3

You can combine PDF/VT-2 document data with VDP resource data to be output.

  • PDF/VT-2 variable printing is a method to manage only a part of a document as an external file and combine it with the document when making prints. Printing information such as the direct-mail address and ticket serial code can be changed to suit recipient conditions.
