Register an SMB server. Sending scan data to an SMB server is made easy by registering the SMB server as a destination.
preconditionYou can register up to 150 SMB servers.
Follow the procedure on Registering a Destination and a Subject and a Message of E-mail to display the Scan Address Register Menu screen.
Press Address Edit.
The Scan Address Register screen is displayed.
Press SMB.
supplementary explanationAs default, the E-mail address list is displayed.
You can specify a destination tab that is displayed by default in Scan Setting.
For details, refer to [User Setting]: [Scan Setting] in User Setting or [Administrator Setting]: [Scan Setting] in Administrator Setting.
Press Add.

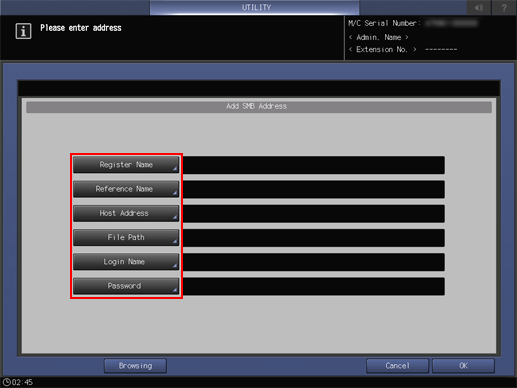

Enter information of a destination on the Add SMB Address screen. Pressing each item displays each screen to enter characters.
supplementary explanationFor details about how to enter characters, refer to Inputting Characters.
Register Name | Enter a name of a destination. If you register the name, it is displayed on the destination list. You can enter up to 24 one-byte characters (12 two-byte characters). |
Reference Name | Enter text to search for a destination. You can enter up to 24 one-byte characters (12 two-byte characters). |
Host Address | Enter the address of an SMB server. Up to 253 one-byte characters can be used. |
File Path | Enter the file path of an SMB server. You can enter up to 255 one-byte characters (127 two-byte characters).
|
Login Name | Enter the login name for an SMB server. You can enter up to 32 one-byte characters (16 two-byte characters). |
Password | Enter the password for an SMB server. Up to 32 one-byte characters can be used.
|
Browsing This setting is displayed and available on the machine mounted with Image Controller IC-605. | Search a destination from the browse list on the network.
|
Press OK.

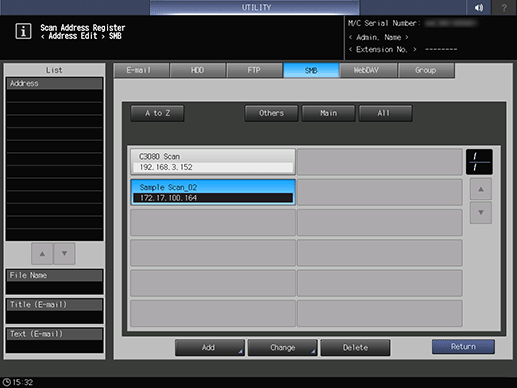

Check that the registration is completed.
supplementary explanationIf destinations cannot be displayed on one page, press down or up to switch between pages.
