ADF Original Stop Pos. Adj.
Adjust the position to start scanning on the ADF and the image position in the crosswise direction.
Tips
Adjust the scanning start position after you have completed ADF Adjustment - FD-Mag. Adjustment. Adjust the image position in crosswise direction after completing Printer Adjustment - Centering Adjustment.
Follow the procedure on Displaying the [Administrator Setting Menu] Screen to display the Administrator Setting Menu screen.

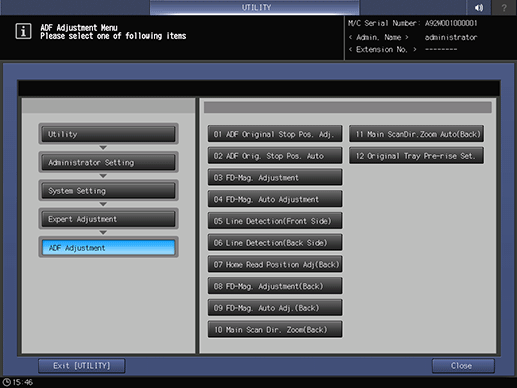

Press System Setting on the Administrator Setting Menu screen, and then press Expert Adjustment, ADF Adjustment, and ADF Original Stop Pos. Adj. in sequence.

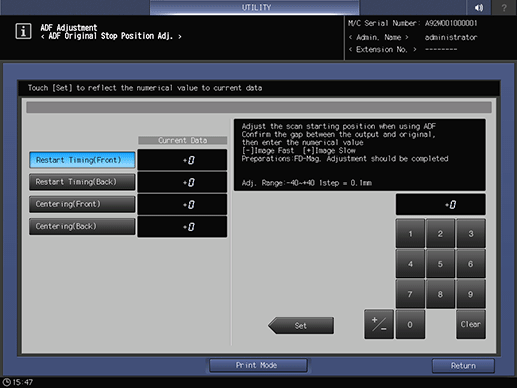

The ADF Original Stop Position Adj. screen is displayed.
supplementary explanationFor details about subsequent operations, refer to [ADF Original Stop Pos. Adj.].
